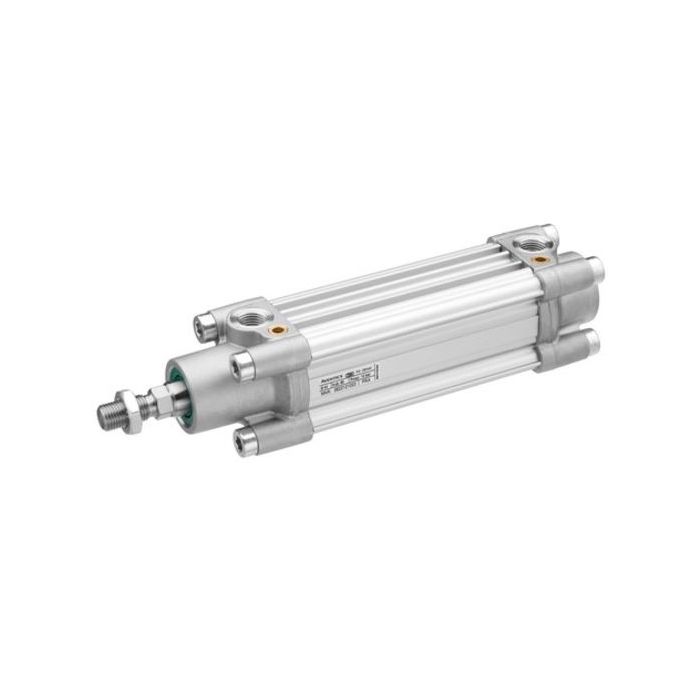

Pneumatic cylinder AVENTICS 822122010
Lead time if the product is out of stock (business days):
35
AVENTICS Series PRA (ISO 15552)
• PRA Series cylinders have a compact design profile with integrated sensor slots.
• PRA (ISO 15552) cylinders can be used for all industries.
• This includes general automation technology, machine and systems construction, as well as specific industry applications.
• PRA Series cylinders have a compact design profile with integrated sensor slots.
• PRA (ISO 15552) cylinders can be used for all industries.
• This includes general automation technology, machine and systems construction, as well as specific industry applications.
| Series | PRA |
|---|---|
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 80 |
| Min. pressure (bar) | 1.50 |
| Max. pressure (bar) | 10 |
| Weight 0 mm stroke | 1.06 kg |
| Weight +10 mm stroke | 0.047 kg |
| Lead (mm) | 400 |
| Pressure (bar) | 6.30 |
| Standard | ISO 15552 |
| Principle | double-action |
| Stuffing | pneumatic / adjustable |
| Certifications | ATEX |
| Atex | Optional |
| Integrated rear eye | Yes |
| Material | Polyurethane |
| Coupling | G 1/4 |
| Piston rod thread | M16x1,5 |
| Piston diameter (mm) | 50 |
| Retraction force of the piston (N) | 1035 |
| Piston removal force (N) | 1235 |
| Stuffing length | 17 mm |
| Stuffing energy | 15 J |
| Max pace | 2100 mm |
| Manufacturer | AVENTICS |
| Manufacturer code | 822122010 |
