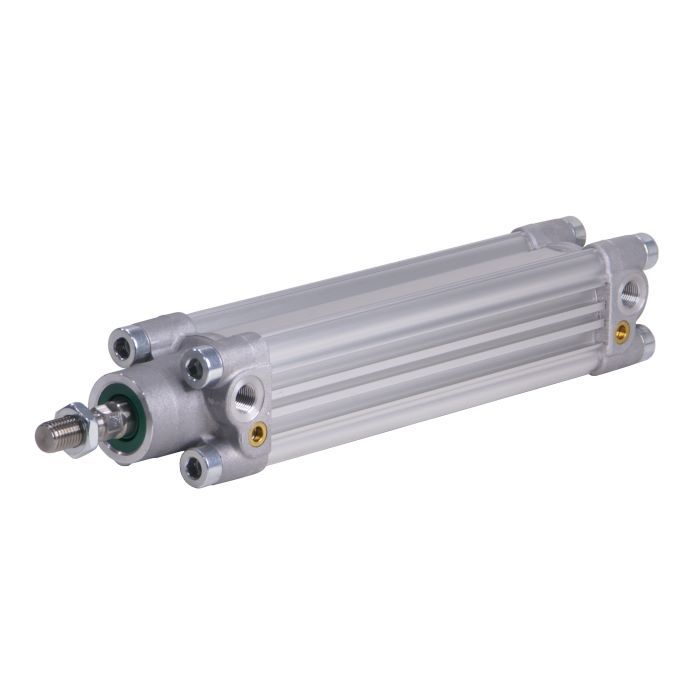

Pneumatic cylinder AVENTICS 822120004

Lead time if the product is out of stock (business days):

35
Technical characteristics
Series PRA
Min. ambient temperature, °C -20.00
Max. ambient temperature, °C 80.00
Min. pressure, bar 1.50
Max. pressure, bar 10.00
Weight 0 mm stroke 0.5 kg
Weight +10 mm stroke 0.022 kg
Lead, mm 100.00
Pressure, bar 6.30
Standard ISO 15552
Principle double-action
Stuffing pneumatic / adjustable
Certificate ATEX
Atex optional
Integrated rear eye Yes
Material Polyurethane
Coupling G 1/8
Piston rod thread M10x1,25
Piston diameter, mm 32.00
Retraction force of the piston, N 435.00
Piston removal force, N 505.00
Stuffing length 16.5 mm
Stuffing energy 4.8 J
Max pace 1600 mm
Manufacturer code 822120004
