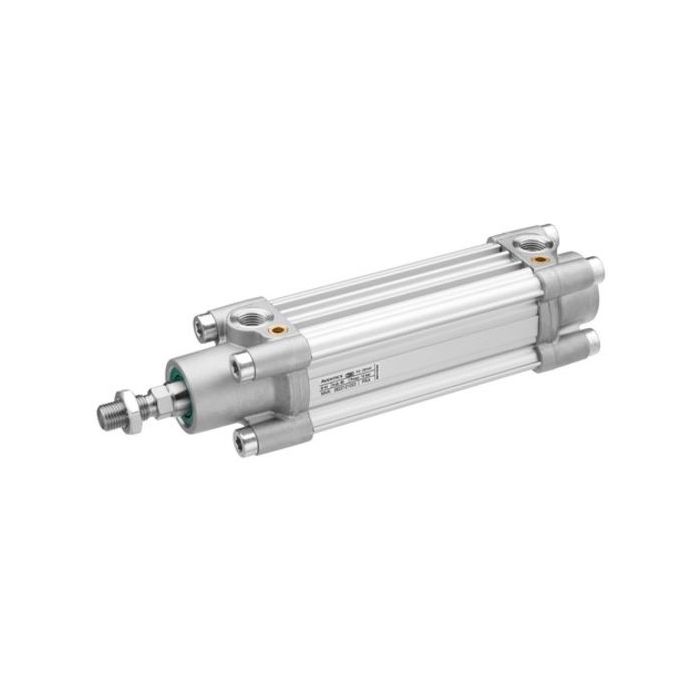

Pneumatic cylinder AVENTICS 0822122003

Technical characteristics
Series PRA
Standard ISO 15552
Lead, mm 80.00
Piston 50 mm
Diameter (mm) 0.00
Principle double-action
Material Polyurethane
Stuffing pneumatic / adjustable
Max. pressure (bar) 10.00
Certificate ATEX
Atex optional
Integrated rear eye Yes
Enviroment temperature °C -20 °C- 80°C
Pressure (bar) 6.30
Min. pressure (bar) 0.00
Retraction force of the piston 1035 N
Stuffing length 17 mm
Piston removal force 1235 N
Coupling G 1/4
Piston rod thread M16x1,5
Stuffing energy 15 J
Weight 0 mm stroke 1.06 kg
Weight +10 mm stroke 0.047 kg
Max pace 2100 mm
Min. mean temperature -20 °C
Stroke 80 mm
