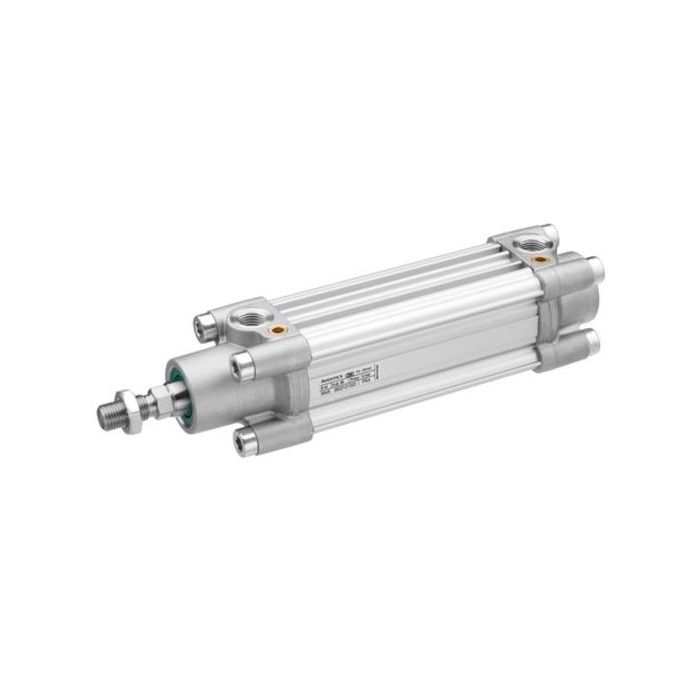

Pneumatic cylinder AVENTICS 822122009

Lead time if the product is out of stock (business days):

AVENTICS Series PRA (ISO 15552)

• PRA Series cylinders have a compact design profile with integrated sensor slots.
• PRA (ISO 15552) cylinders can be used for all industries.
• This includes general automation technology, machine and systems construction, as well as specific industry applications.
Technical characteristics
Series PRA
Min. ambient temperature, °C -20.00
Max. ambient temperature, °C 80.00
Min. pressure, bar 1.50
Max. pressure, bar 10.00
Weight 0 mm stroke 1.06 kg
Weight +10 mm stroke 0.047 kg
Lead, mm 320.00
Pressure, bar 6.30
Standard ISO 15552
Principle double-action
Stuffing pneumatic / adjustable
Certificate ATEX
Atex optional
Integrated rear eye Yes
Material Polyurethane
Coupling G 1/4
Piston rod thread M16x1,5
Piston diameter, mm 50.00
Retraction force of the piston, N 1,035.00
Piston removal force, N 1,235.00
Stuffing length 17 mm
Stuffing energy 15 J
Max pace 2100 mm
Manufacturer AVENTICS
Manufacturer code 822122009
