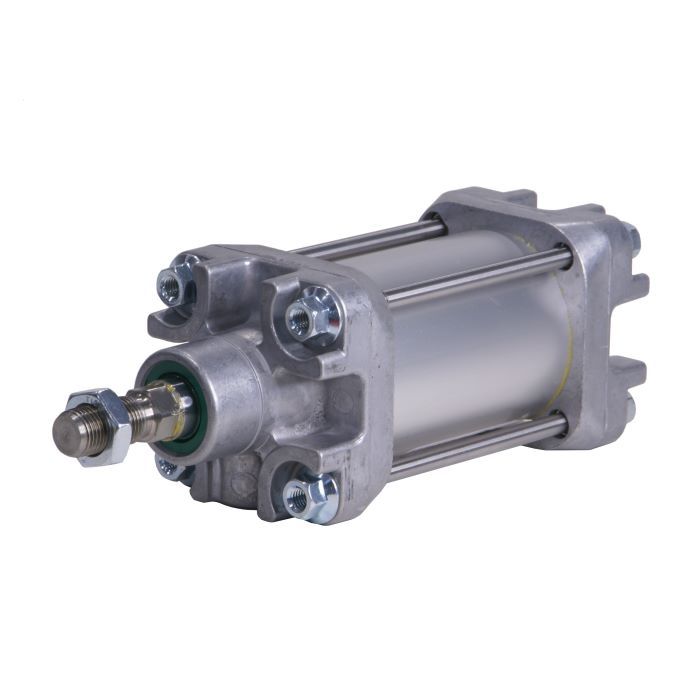

Pneumatic cylinder AVENTICS 1670816000
Lead time if the product is out of stock (business days):
35
AVENTICS Series 167
A tie rod cylinder according ISO 6431, offering the highest robustness for tough environments.
A tie rod cylinder according ISO 6431, offering the highest robustness for tough environments.
| Series | 167 |
|---|---|
| Piston diameter (mm) | 80 |
| Stroke (mm) | 160 |
| Principle | Double acting |
| Stuffing | Pneumatic/adjustable |
| With or without magnet | With magnet |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 75 |
| Pressure (bar) | 6 |
| Min. pressure (bar) | 2 |
| Max. pressure (bar) | 10 |
| Retraction force of piston (N) | 2720 |
| Piston removal force (N) | 3000 |
| Max. pace | 1700mm |
| Coupling | G3/8 |
| Piston rod thread | M20 x 1.5 |
| Material | Polyurethane (PU) |
| Standard | ISO 6431 |
| Explosion-proof | Optional |
| Brand | AVENTICS |
