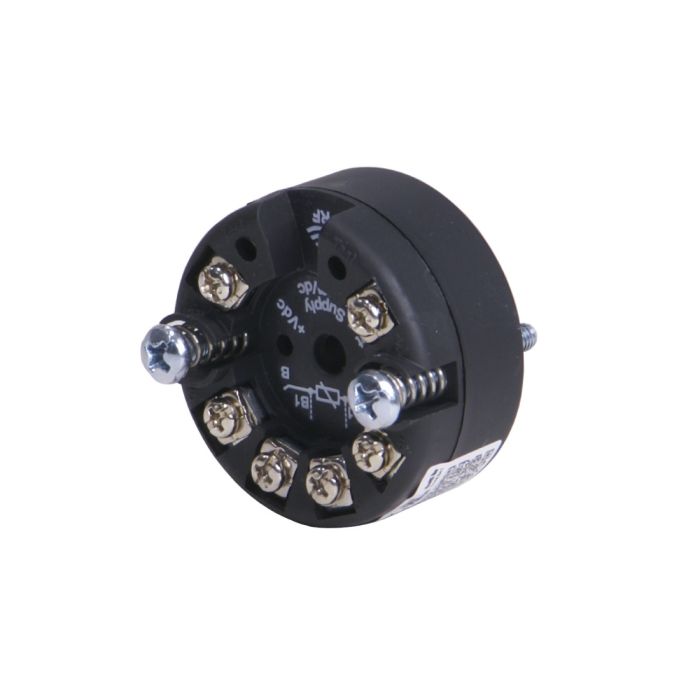

Temperature transmitter Pixsys 2000.35.010
Lead time if the product is out of stock (business days):
25
Temperature transmitters programmable by NFC RTD/Thermocouples to 4..20 mA
Features:
• Transmitters for DIN/B head convert a signal acquired by temperature probes PT100, PT1000 or Ni100 (with 2-, 3- and 4-wire connections) or Thermocouples into a 4..20 mA signal (2-wire technology), current-loop
• These converters ensure high accuracy on the reading scale with 16-bit conversion and possibility to rescale the output 4..20 mA basing on input range
• Programming relies on NFC communication: it is possible to choose between dedicated programmer that allows you to perform all settings and any calibrations quickly and without need to power-up the converter or even to programthe converters by MyPixsys app for Android smartphones
Features:
• Transmitters for DIN/B head convert a signal acquired by temperature probes PT100, PT1000 or Ni100 (with 2-, 3- and 4-wire connections) or Thermocouples into a 4..20 mA signal (2-wire technology), current-loop
• These converters ensure high accuracy on the reading scale with 16-bit conversion and possibility to rescale the output 4..20 mA basing on input range
• Programming relies on NFC communication: it is possible to choose between dedicated programmer that allows you to perform all settings and any calibrations quickly and without need to power-up the converter or even to programthe converters by MyPixsys app for Android smartphones
| Series | 2000.35.010 |
|---|---|
| Product type | Temperature transmitter |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 85 |
| Min. measurement range (°C) | -200 |
| Max. measurement range (°C) | 600 |
| Output signal | 4...20mA |
| Programmable | Kyllä |
| Dimensions | ø45 mm x 23mm |
| IP-Class | IP20 |
| Brand | Pixsys |
