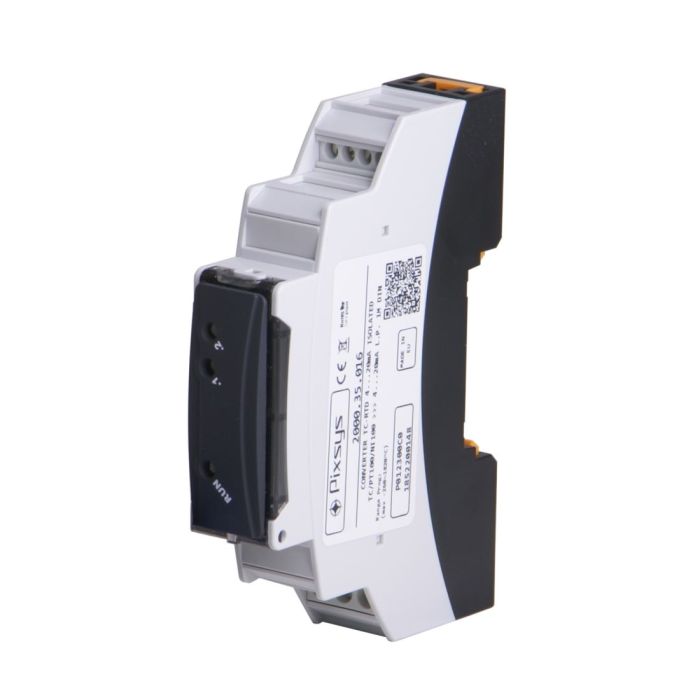

Temperature transmitter Pixsys 2000.35.016
Lead time if the product is out of stock (business days):
20
Signal converter 2000.35.016 is a DIN rail-mounted programmable temperature transmitter/ 4-20mA signal converter for thermocouple sensors K, S, R, J, T, N, B, E - or PT100, PT1000, Ni100 - 2/3/4 wire for resistance sensors
• For 2, 3 and 4-wire sensors
• 2-wire 4-20 mA output galvanically isolated
• Storage of measurement data in buffer memory (loop) 1-3600S
• Dimensions 18 x 90 x 64 mm (1 module)
• Quick start-up without voltage and wirelessly with NFC from a PC or with the MyPixsys app for Android smartphones
• For 2, 3 and 4-wire sensors
• 2-wire 4-20 mA output galvanically isolated
• Storage of measurement data in buffer memory (loop) 1-3600S
• Dimensions 18 x 90 x 64 mm (1 module)
• Quick start-up without voltage and wirelessly with NFC from a PC or with the MyPixsys app for Android smartphones
| Series | 2000.00 |
|---|---|
| Product type | Temperature transmitter |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 85 |
| Min. measurement range (°C) | -200 |
| Max. measurement range (°C) | 1820 |
| Supply voltage | 6...32V DC |
| Output signal | 4...20mA |
| Programmable | Yes |
| IP-Class | IP20 |
| Brand | Pixsys |
