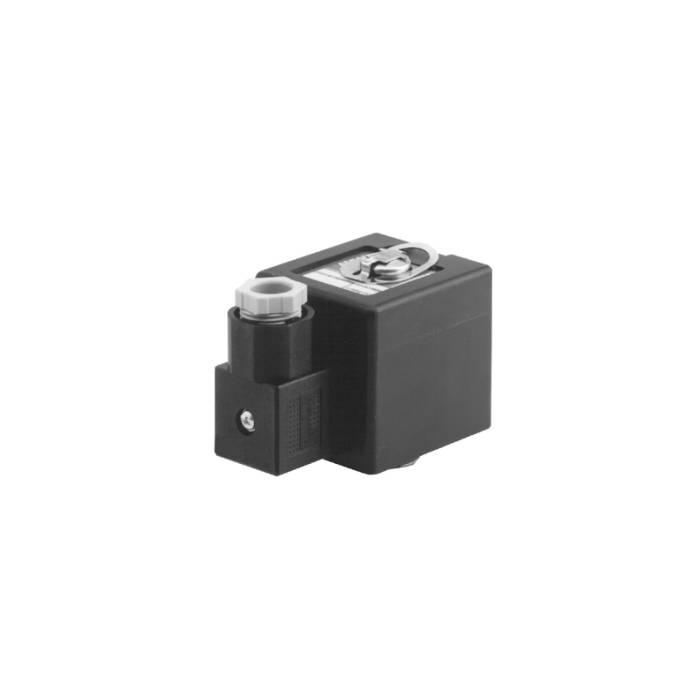

Solenoid valve coil Asco 400325117
Lead time if the product is out of stock (business days):
25
Asco Series 400
• A range of moulded spade connection coils, fully encapsulated by a thermosetting epoxy-resin.
• These rectangular coils are in accordance with IEC 335 regulations and are provided with spade plug connections, according to ISO 4400 / EN 175301-803, form A and DIN 43650, 11 mm, industry standard B.
• The 3-spade female socket connector with cable gland for cable diameters 6 - 8 mm or 6 - 10 is a commonly used standard for connection of live and ground wiring.
• These SC-series coils are designed for continuous duty, class F service up to 155°C max. operating temperature.
• The high heat dissipation of the integral yoke construction results in a cool-running coil.
• SC-coils are fully interchangeable with the metal solenoid enclosures.
• A range of moulded spade connection coils, fully encapsulated by a thermosetting epoxy-resin.
• These rectangular coils are in accordance with IEC 335 regulations and are provided with spade plug connections, according to ISO 4400 / EN 175301-803, form A and DIN 43650, 11 mm, industry standard B.
• The 3-spade female socket connector with cable gland for cable diameters 6 - 8 mm or 6 - 10 is a commonly used standard for connection of live and ground wiring.
• These SC-series coils are designed for continuous duty, class F service up to 155°C max. operating temperature.
• The high heat dissipation of the integral yoke construction results in a cool-running coil.
• SC-coils are fully interchangeable with the metal solenoid enclosures.
| Series | Kela |
|---|---|
| Explosion-proof version | No |
| Product type | Solenoid valve coil |
| Manufacturer | ASCO |
| HVAC | 4125361 |
| Electrical number | 2825352 |
| Manufacturer code | 400325117 |
