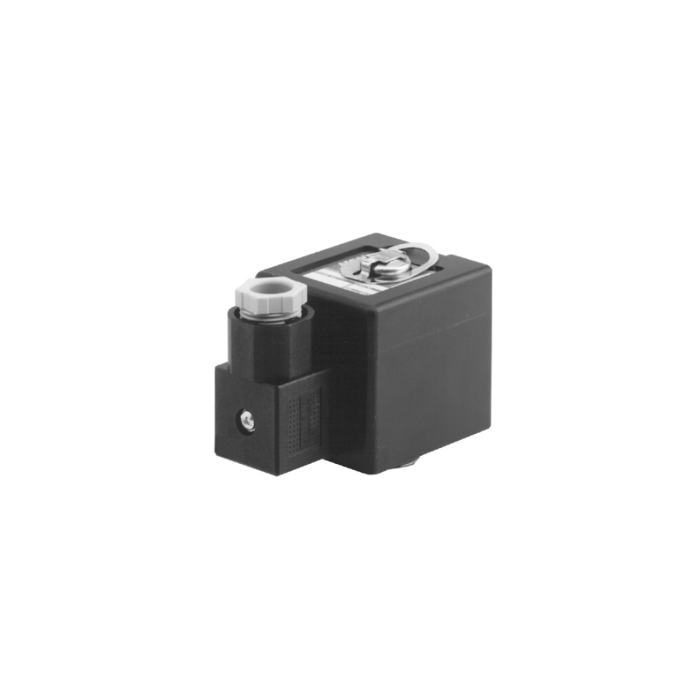

Solenoid valve coil ASCO 400325217
Lead time if the product is out of stock (business days):
25Asco Series 400
• A range of moulded spade connection coils, fully encapsulated by a thermosetting epoxy-resin
• These rectangular coils are in accordance with IEC 335 regulations and are provided with spade plug connections, according to ISO 4400 / EN 175301-803, form A and DIN 43650, 11 mm, industry standard B
• The 3-spade female socket connector with cable gland for cable diameters 6 - 8 mm or 6 - 10 mm is a commonly used standard for connection of live and ground wiring
• These SC-series coils are designed for continuous duty, class F service up to 155 °C max. operating temperature
• The high heat dissipation of the integral yoke construction results in a cool-running coil
• SC-coils are fully interchangeable with the metal solenoid enclosures
• A range of moulded spade connection coils, fully encapsulated by a thermosetting epoxy-resin
• These rectangular coils are in accordance with IEC 335 regulations and are provided with spade plug connections, according to ISO 4400 / EN 175301-803, form A and DIN 43650, 11 mm, industry standard B
• The 3-spade female socket connector with cable gland for cable diameters 6 - 8 mm or 6 - 10 mm is a commonly used standard for connection of live and ground wiring
• These SC-series coils are designed for continuous duty, class F service up to 155 °C max. operating temperature
• The high heat dissipation of the integral yoke construction results in a cool-running coil
• SC-coils are fully interchangeable with the metal solenoid enclosures
Series | Kela |
---|---|
Product type | Solenoid valve coil |
Supply voltage | 230V/50Hz |
Material | Epoxy resin |
Brand | ASCO |
