715 | Ball valve 2PC | DN8 / 1/4" | PN63 | Female thread | Acid-resistant stainless steel | Actuator mounting No |
Lead time if the product is out of stock (business days):
25

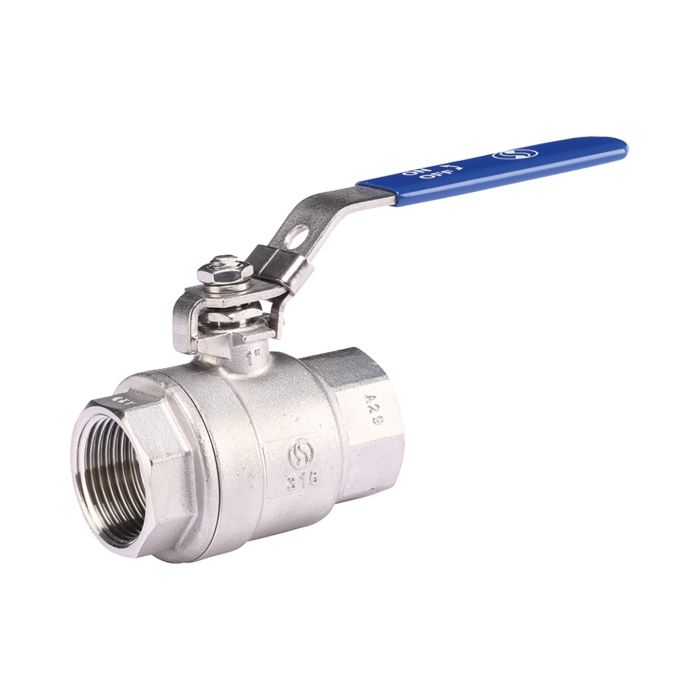

2 piece stainless steel ball valve with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution and compressed air.
Features:
• Thread end ISO 228-1
• Sizes DN8 - DN100
• Temperature range -20 °C...+180 °C
• Pressure rating PN63, PN50, PN40, PN25 (based on size)
• Manually operated
Features:
• Thread end ISO 228-1
• Sizes DN8 - DN100
• Temperature range -20 °C...+180 °C
• Pressure rating PN63, PN50, PN40, PN25 (based on size)
• Manually operated
| Series | 715 |
|---|---|
| Product type | Ball valve 2PC |
| Nominal size (DN) | 8 |
| Connection size | 1/4" |
| Pressure class | PN63 |
| Pipe connection | Female thread |
| Thread standard | ISO 228-1 G |
| Material (body) | Acid-resistant stainless steel |
| Material (body, std) | CF8M |
| Trim material | AISI316 |
| Sealing material | RPTFE |
| Tightness direction | Bidirectional |
| Pressure (bar) | 63 |
| Max. ambient temperature (°C) | 180 |
| Min. ambient temperature (°C) | -20 |
| Weight (kg) | 0.18 |
| Brand | Sferaco |
| Valve operation device | Handlever |
| Max. pressure (bar) | 63 |
