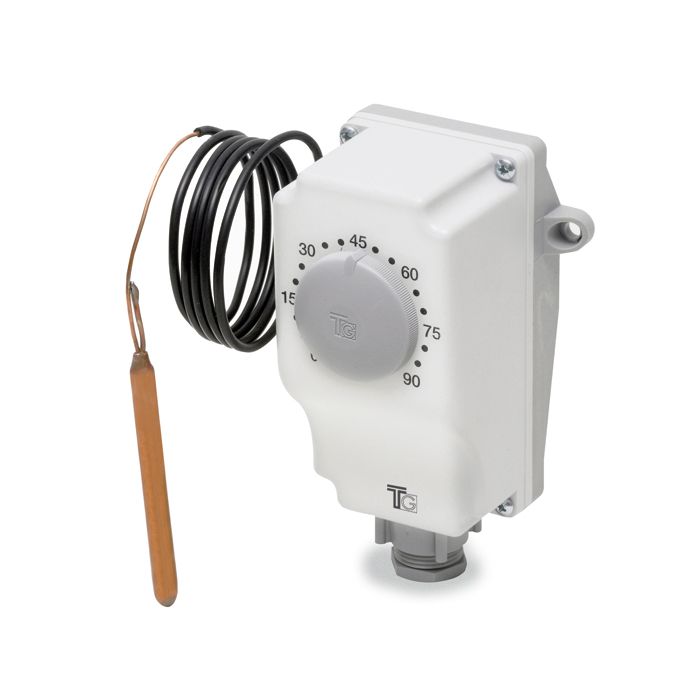

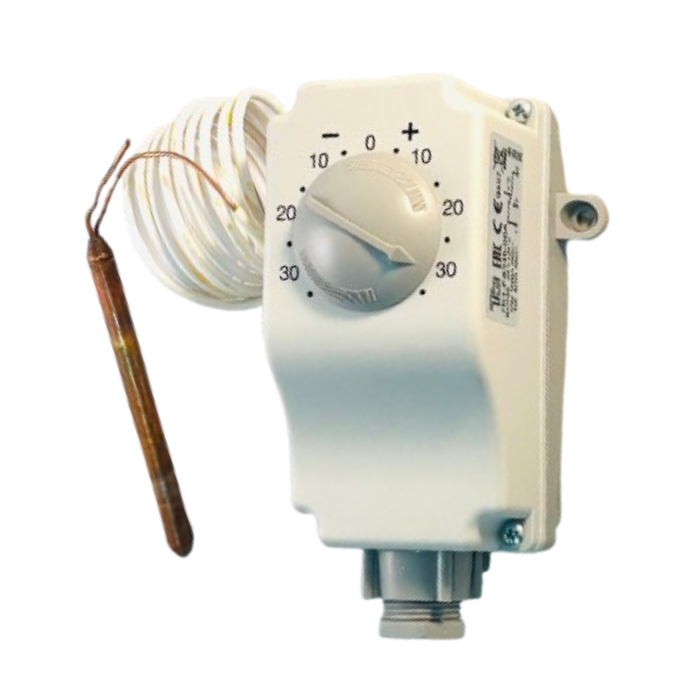

Capillary thermostat Fantini Сosmi 7K135
Product Code:
131026
Capillary control thermostat Fantini Cosmi 7K135
• Temperature tolerance:
○ min ± 5°C
○ max ± 3°C
• Thermal gradient 1°C/min
• Earthing device with screw terminals
• Pollution degree 2
• Compliance with CE standard 0497 (PED)
• Type of regulation: external
• SPDT contacts: C/NO/NC
• Contact rating 16(4)A 250Vca, 6(1)A 400Vca
• Temperature tolerance:
○ min ± 5°C
○ max ± 3°C
• Thermal gradient 1°C/min
• Earthing device with screw terminals
• Pollution degree 2
• Compliance with CE standard 0497 (PED)
• Type of regulation: external
• SPDT contacts: C/NO/NC
• Contact rating 16(4)A 250Vca, 6(1)A 400Vca
| Series | 7K1 |
|---|---|
| Product type | Capillary thermostat |
| Min measurement range (°C) | -35 |
| Max measurement range (°C) | 35 |
| Dimensions | ø6.5 x 100mm |
| Changeover contact | 16 |
| Material (sensor) | Copper |
| IP-class | IP55 |
| Brand | Fantini Сosmi |
