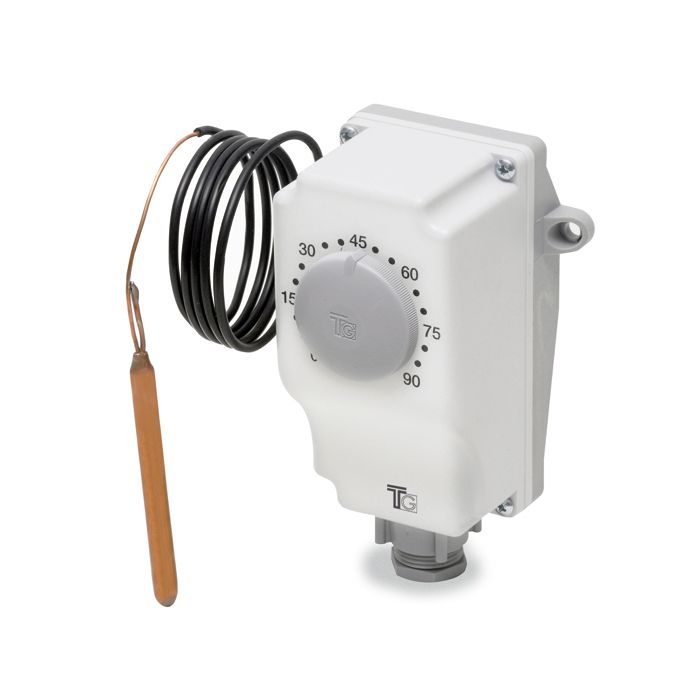

Capillary thermostat Trafag 7K190
Lead time if the product is out of stock (business days):
27
Capillary control thermostat Fantini Cosmi 7K190.
• Temp. Tolerance:
min ± 5°C
max ± 3°C
• Thermal gradient 1°C/min
• Earthing device with screw terminals
• Pollution degree 2
• Compliance with CE standard 0497 (PED)
Type of regulation: External
SPDT contacts: C/NO/NC
Contact rating 16(4)A 250Vca, 6(1)A 400Vca
• Temp. Tolerance:
min ± 5°C
max ± 3°C
• Thermal gradient 1°C/min
• Earthing device with screw terminals
• Pollution degree 2
• Compliance with CE standard 0497 (PED)
Type of regulation: External
SPDT contacts: C/NO/NC
Contact rating 16(4)A 250Vca, 6(1)A 400Vca
| Series | 7K190 |
|---|---|
| Product type | Capillary thermostat |
| Min. measurement range (°C) | 0 |
| Max. measurement range (°C) | 90 |
| IP-Class | IP55 |
| Length (mm) | 1000 |
| Changeover contact | 16 (4) A 250 V |
| Material (sensor) | Ruostumaton teräs |
| Explosion-proof version | No |
| WRAS | No |
| Manufacturer | Fantini Сosmi |
| HVAC | 4363295 |
| Electrical number | 2615073 |
| Manufacturer code | 7K190 |
