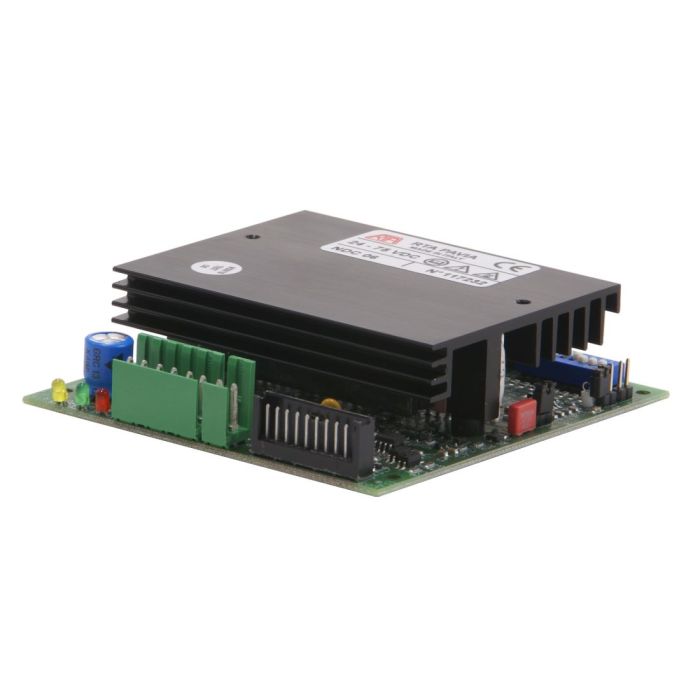

Stepper motor drive RTA A-NDC 06.V
Lead time if the product is out of stock (business days):
42
RTA Series A-NDC
The additional features of the A-NDC controller compared to the NDC version are:
• Adaptive micro stepping, max. 12,800 steps/lap
• Smart current profile management, thanks to which smooth movement is achieved along with lower temperatures
Technical features:
• Dimensions: 101 x 94 x 25 mm
• Wide operating voltage range: 24 – 85 VDC
• Step 400, 800, 1600, 3200 and 500, 1000, 2000, 4000 steps/revolution
• Motor phase current can be set to eight values
• Automatic current drop when the motor is not used
• Optional-separated inputs enable connections to various control systems
• Possibility to turn off the motor with an external logic signal
• Stepper motor output short-circuit protected
• Protected against under and over voltage
• Protected against overheating
• Operation with one external operating voltage
• With a high-efficiency CHOPPER MOSFET power stage
• The electronic resonance damping function reduces the acoustic noise and mechanical vibration at low and medium frequencies
• Built-in oscillator, speed range 14 – 450 rpm
• Terminal block (screw-type), standard model
• Also available with outer case a case, A-NDC 96
The additional features of the A-NDC controller compared to the NDC version are:
• Adaptive micro stepping, max. 12,800 steps/lap
• Smart current profile management, thanks to which smooth movement is achieved along with lower temperatures
Technical features:
• Dimensions: 101 x 94 x 25 mm
• Wide operating voltage range: 24 – 85 VDC
• Step 400, 800, 1600, 3200 and 500, 1000, 2000, 4000 steps/revolution
• Motor phase current can be set to eight values
• Automatic current drop when the motor is not used
• Optional-separated inputs enable connections to various control systems
• Possibility to turn off the motor with an external logic signal
• Stepper motor output short-circuit protected
• Protected against under and over voltage
• Protected against overheating
• Operation with one external operating voltage
• With a high-efficiency CHOPPER MOSFET power stage
• The electronic resonance damping function reduces the acoustic noise and mechanical vibration at low and medium frequencies
• Built-in oscillator, speed range 14 – 450 rpm
• Terminal block (screw-type), standard model
• Also available with outer case a case, A-NDC 96
| Series | A-NDC |
|---|---|
| Supply voltage | 24-85 VDC |
| Min. Current (A) | 1.90 |
| Max. Current (A) | 6 |
| Product type | Askelmoottoriohjain |
| Manufacturer | RTA |
| Manufacturer code | A-NDC 06.V |
