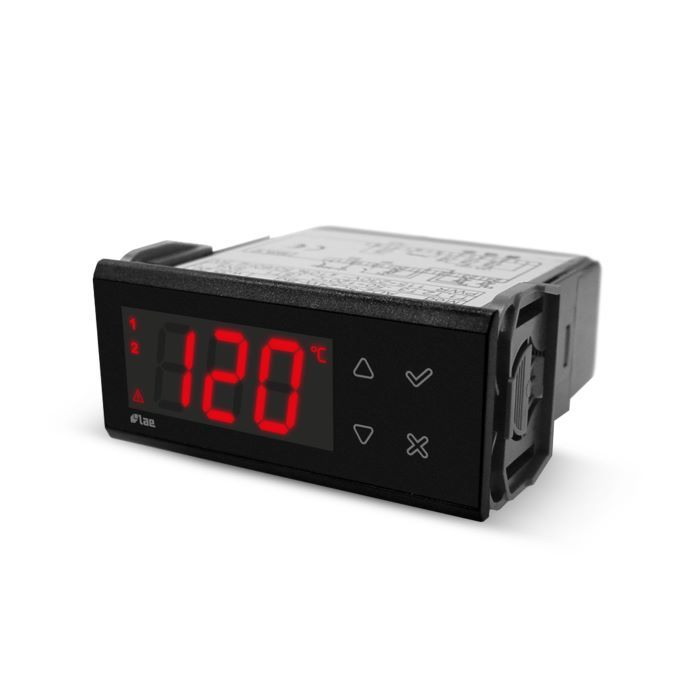

Electronic thermostat LAE AC2-5PS2RW
Lead time if the product is out of stock (business days):
35
Two channel universal Controller AC2-5, ON/OFF or PID
Main Features:
• Stylish Capacitive Touch display and keypad technology
• Runs on universal mains power supply
• PID with autotuning or ON/OFF control
• Main output on 12A relay or for SSR piloting and auxiliary output on 7A relay
• Input for Pt100
• Selectable refrigerating/heating
• Dehumidifying/humidifying control
• Absolute or relative temperature alarms
• Connectivity to supervisory systems and gateway for cloud
Main Features:
• Stylish Capacitive Touch display and keypad technology
• Runs on universal mains power supply
• PID with autotuning or ON/OFF control
• Main output on 12A relay or for SSR piloting and auxiliary output on 7A relay
• Input for Pt100
• Selectable refrigerating/heating
• Dehumidifying/humidifying control
• Absolute or relative temperature alarms
• Connectivity to supervisory systems and gateway for cloud
| Series | AC2-5 |
|---|---|
| Product type | Electronic thermostat |
| Min. measurement range (°C) | 50 |
| Max. measurement range (°C) | 850 |
| Input | PT100 |
| Dimensions | 77 x 35 x 77mm |
| Supply voltage | 115…230V |
| IP-Class | IP54 |
| Brand | LAE |
