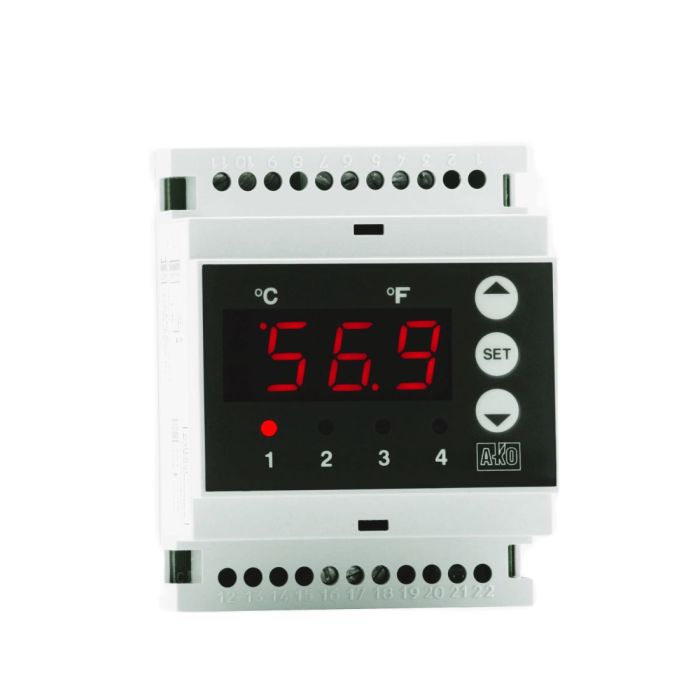

Electronic thermostat Ako-15223
Lead time if the product is out of stock (business days):
18
Temperature controller, 2 relays, up to 2 probes, DIN rail mounting
• Temp range from -50 ºC to + 99.9 ºC
• 3 digits displays (ºC/ºF)
• Resolution 0,1 ºC
• Accuracy 0,5 ºC
• NTC probe
• Box dimensions 70 x 90 x 58 mm (4 modules DIN)
• Front part dimensions 42,2 x 66,2 mm
• Relay R1 SPST 16 A: AC1=12, AC3=9
• Relay R2 SPDT 8 A: AC1=8, AC3=4
• Power supply 230 V~ ±10%, 50/60 Hz
The two probe inputs may be linked with the relay outputs for the functions of thermometer and thermostat in cold and heat applications, as a differential control of the two probes, double thermostat, two stages, neutral zone, etc.
Appplication: Solar energy, electric panels, industrial installations, etc
• Temp range from -50 ºC to + 99.9 ºC
• 3 digits displays (ºC/ºF)
• Resolution 0,1 ºC
• Accuracy 0,5 ºC
• NTC probe
• Box dimensions 70 x 90 x 58 mm (4 modules DIN)
• Front part dimensions 42,2 x 66,2 mm
• Relay R1 SPST 16 A: AC1=12, AC3=9
• Relay R2 SPDT 8 A: AC1=8, AC3=4
• Power supply 230 V~ ±10%, 50/60 Hz
The two probe inputs may be linked with the relay outputs for the functions of thermometer and thermostat in cold and heat applications, as a differential control of the two probes, double thermostat, two stages, neutral zone, etc.
Appplication: Solar energy, electric panels, industrial installations, etc
| Series | AKO-15xxxx |
|---|---|
| Product type | Electronic thermostat |
| Min. measurement range (°C) | -50 |
| Max. measurement range (°C) | 99 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 50 |
| Dimensions | 70 X 58 X 90 |
| Output signal | 2 x rele |
| IP-Class | IP20 |
| Input | NTC-10K |
| Supply voltage | 230 ± 10 % |
| Explosion-proof version | No |
| WRAS | No |
| Manufacturer | AKO |
| HVAC | 4363163 |
| Electrical number | 2631403 |
| Manufacturer code | AKO-15223 |
