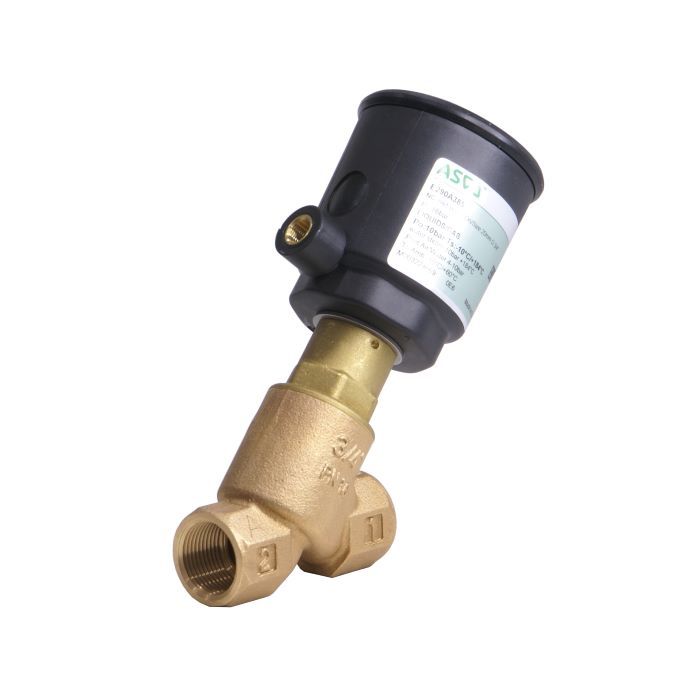

Angle seat valve ASCO E290D0330DA0000 G3/4" PA-actuator, bronze body, NC
Lead time if the product is out of stock (business days):
16
ASCO Series 290
• ASCO’s series of angle seat and globe valves are modular, robustly constructed and long-lasting.
• The frame is available in two materials, bronze or stainless steel.
• The actuator is available in either polyamide or stainless steel.
• Valve connection options include thread, weld end, Tric-Clamp and flange mounting.
• With the signaling box installed, you can you can get information about the valve's closed and open position.
• The Asco E290D valve is also available with various certifications and approvals.
• ASCO’s series of angle seat and globe valves are modular, robustly constructed and long-lasting.
• The frame is available in two materials, bronze or stainless steel.
• The actuator is available in either polyamide or stainless steel.
• Valve connection options include thread, weld end, Tric-Clamp and flange mounting.
• With the signaling box installed, you can you can get information about the valve's closed and open position.
• The Asco E290D valve is also available with various certifications and approvals.
| Series | 290 |
|---|---|
| Connection type | Thread |
| Valve function | NC |
| Actuator size Ø (mm) | 50 |
| Material (body) | Bronze |
| Connection size | 3/4" |
| Actuator | Polyamide (PA) |
| Media | Aggressive liquids/gases, air, inert gas, fuel oil, hot water, light oil, oxygen, steam, water |
| Sealing material | Polytetrafluorethylene (PTFE) |
| Flow-through factor (Kv, m3/h) | 10.7 |
| Min. pressure (mbar) | 10^-2 |
| Max. pressure, air (bar) | 10 |
| Max. pressure, liquids (bar) | 10 |
| Max. pressure, steam (bar) | 10 |
| Brand | ASCO |
