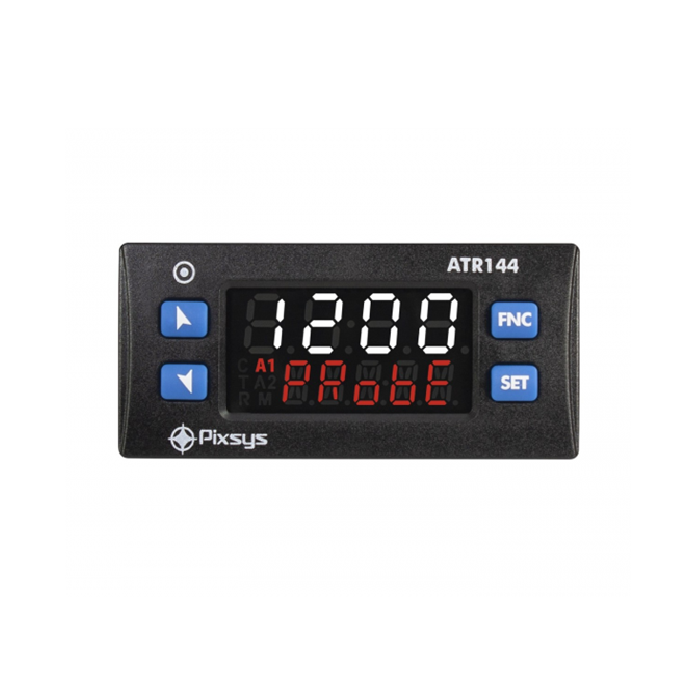

Electronic thermostat Pixsys ATR144-ABC
Lead time if the product is out of stock (business days):
25
| Series | ATR144 |
|---|---|
| Product type | Electronic thermostat |
| Min. measurement range, °C | -9,999.00 |
| Max. measurement range, °C | 9,999.00 |
| Min. ambient temperature, °C | 0.00 |
| Max. ambient temperature, °C | 45.00 |
| Dimensions | 77 x 35 x 53 |
| Output signal | 2 x rele |
| IP-Class | IP65 |
| Input | PT100, PT500, PT1000, Ni100, PTC1K, NTC10K, K, S, R, J, T, N, B, 0..10 V, 0/4..20mA, 0..60 mV, potentiometer 1..150 KΩ |
| Supply voltage | 24… 230 VAC/DC |
| WRAS | No |
| SIL | No |
| HVAC | 4363149 |
| Electrical number | 2802284 |
| Manufacturer code | ATR144-ABC |
