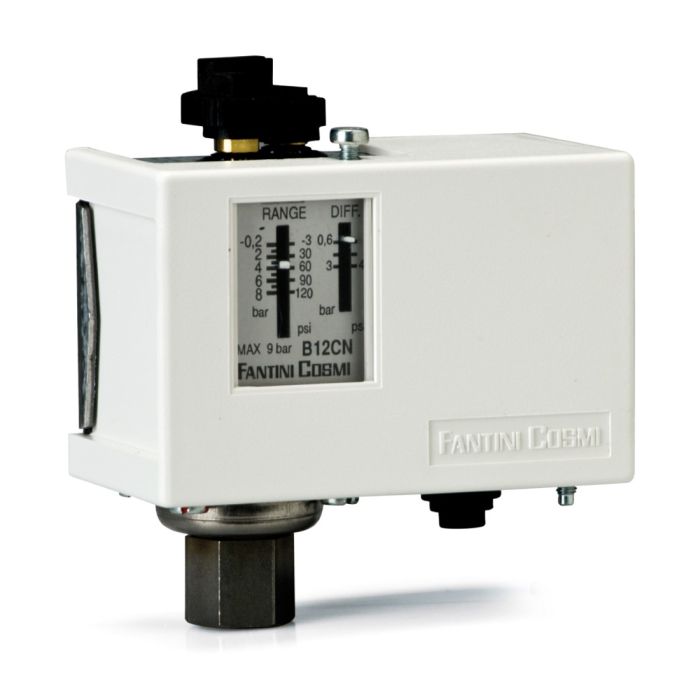

Pressure switch (pressostat) Fantini Сosmi B12CN
Lead time if the product is out of stock (business days):
27
B12/B12..Y pressure switch for over or under pressure Fantini Cosmi
Features:
• Pressure range -0.82...0/0...80 bar
• Changeover contact 250 VAC 16 A
• Sensor material: stainless steel
• Process connection G1/4" internal or external thread
• Medium temperature max. +120 °C
• Protection class IP40/IP65
Typical applications:
• HVAC
• Negative pressure
• Water
Features:
• Pressure range -0.82...0/0...80 bar
• Changeover contact 250 VAC 16 A
• Sensor material: stainless steel
• Process connection G1/4" internal or external thread
• Medium temperature max. +120 °C
• Protection class IP40/IP65
Typical applications:
• HVAC
• Negative pressure
• Water
| Series | B12AN |
|---|---|
| Product type | Pressure switch (pressostat) |
| Material (sensor) | Ruostumaton teräs |
| Max. pressure (bar) | 9 |
| Min. ambient temperature (°C) | -35 |
| Max. ambient temperature (°C) | 60 |
| Min. measurement range (bar) | -0.2 |
| Max. measurement range (bar) | 8 |
| Switching differential | 0.6...3bar |
| Process connection | G1/4" |
| IP-Class | IP40 |
| Brand | Fantini Сosmi |
