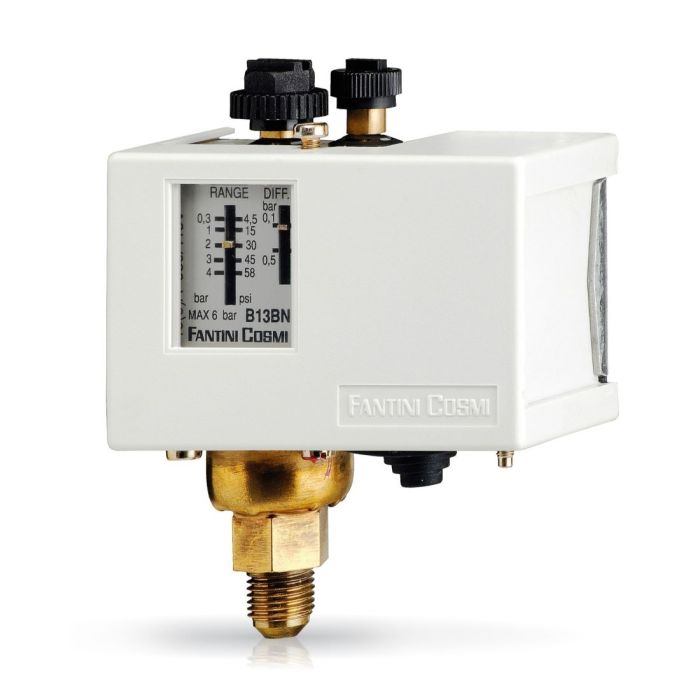

Pressure switch (pressostat) Fantini Сosmi B13BN
Lead time if the product is out of stock (business days):
27
B13/B13..Y pressure switch for overpressure Fantini Cosmi
Features:
• Pressure range 0.3...4/1...10 bar
• Changeover contact 250 VAC 16 A
• Material of the sensor: copper alloy
• Process connection G1/4" external thread
• Medium temperature max. +100 °C
• Max. pressure resistance 10/16 bar
• Protection class IP40/IP65
Typical applications:
• HVAC
• Water
• Compressed air
Features:
• Pressure range 0.3...4/1...10 bar
• Changeover contact 250 VAC 16 A
• Material of the sensor: copper alloy
• Process connection G1/4" external thread
• Medium temperature max. +100 °C
• Max. pressure resistance 10/16 bar
• Protection class IP40/IP65
Typical applications:
• HVAC
• Water
• Compressed air
| Series | B13BN |
|---|---|
| Product type | Pressure switch (pressostat) |
| Max. pressure (bar) | 6 |
| Min. ambient temperature (°C) | -35 |
| Max. ambient temperature (°C) | 60 |
| Min. measurement range (bar) | 0.3 |
| Max. measurement range (bar) | 4 |
| Switching differential | 0.1...0.5bar |
| Process connection | G1/4" |
| IP-Class | IP40 |
| Brand | Fantini Сosmi |
