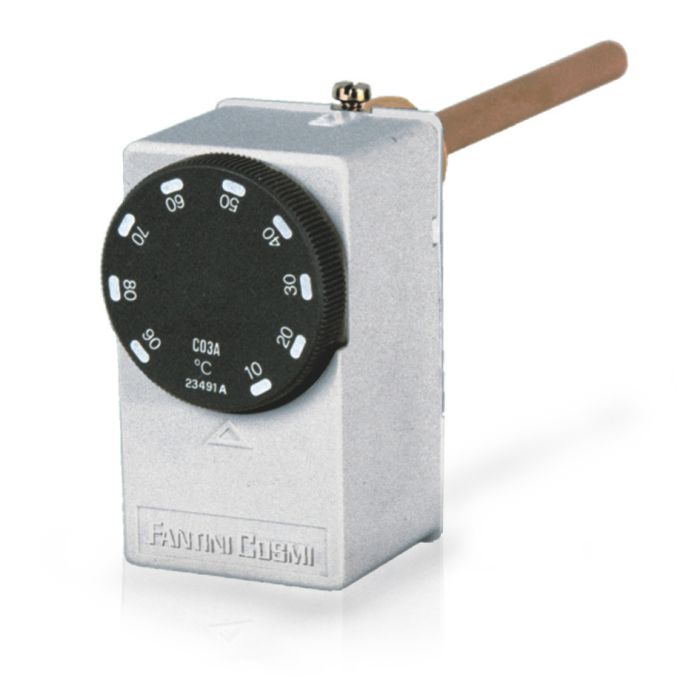

Immersion thermostat Fantini Сosmi C03B3
Lead time if the product is out of stock (business days):
27
Immersion thermostat Fantini Cosmi series C03
Thermostats for direct mounting on the pipeline, supplied with special casing for immersion into the controlled liquid. Suitable for boilers, heating systems, circulation pumps, burners, air heaters.
General features:
• Sensing element with stainless steel diaphragm
• Copper bulb and capillary
• Cooper sheath with connection Gc 1/2 PN10
• Base, cover and knob in shock-proof self-extinguishing thermoplastic material V0
• Differential 6 ± 1 K (the differential is subtracted from the range value, the differential values refer to a thermal gradient of 6K/hour, 1K/min with heat-conducting paste bags)
• Electrical connection output with PVC cable gland
Thermostats for direct mounting on the pipeline, supplied with special casing for immersion into the controlled liquid. Suitable for boilers, heating systems, circulation pumps, burners, air heaters.
General features:
• Sensing element with stainless steel diaphragm
• Copper bulb and capillary
• Cooper sheath with connection Gc 1/2 PN10
• Base, cover and knob in shock-proof self-extinguishing thermoplastic material V0
• Differential 6 ± 1 K (the differential is subtracted from the range value, the differential values refer to a thermal gradient of 6K/hour, 1K/min with heat-conducting paste bags)
• Electrical connection output with PVC cable gland
| Series | C03 |
|---|---|
| Product type | Immersion thermostat |
| Min. measurement range (°C) | 40 |
| Max. measurement range (°C) | 120 |
| Changeover contact | 15 (2.5) A, 250V AC |
| Material (sensor) | Copper |
| IP-Class | IP40 |
| Brand | Fantini Сosmi |
