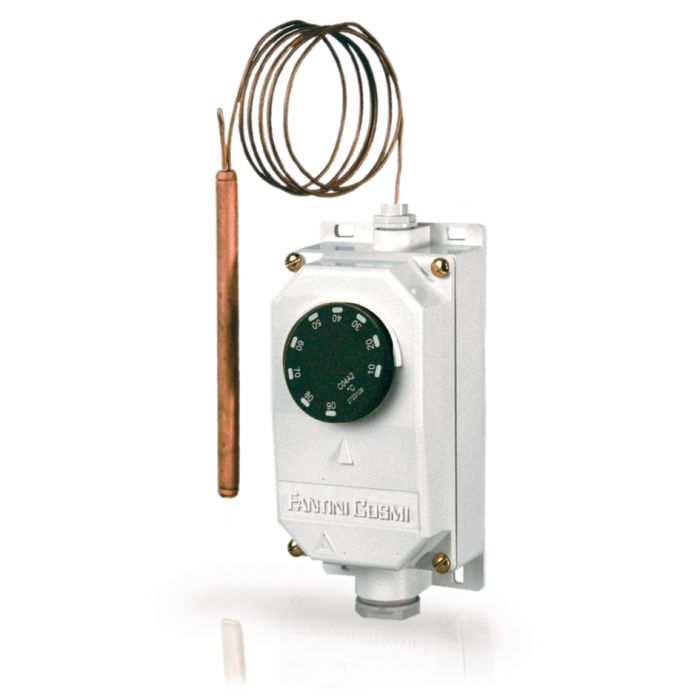

Capillary thermostat Fantini Cosmi C04A3Y
Lead time if the product is out of stock (business days):
27
Capillary thermostat Fantini Cosmi series C04Y.
Thermostats with capillary to control the temperature in the boilers, in the air-conditioning and cooling systems, in household appliances, in electrical furnaces.
General features:
• Sealable casing after the calibration is done
• Sensing element with stainless steel diaphragm
• Copper bulb and capillary, tinned for types C04C2.. and C04D2.
• Base in shock-proof self-extinguishing thermoplastic material V0
• Electrical connection output with G 1/2 cable gland
• Waterproof execution IP65
Thermostats with capillary to control the temperature in the boilers, in the air-conditioning and cooling systems, in household appliances, in electrical furnaces.
General features:
• Sealable casing after the calibration is done
• Sensing element with stainless steel diaphragm
• Copper bulb and capillary, tinned for types C04C2.. and C04D2.
• Base in shock-proof self-extinguishing thermoplastic material V0
• Electrical connection output with G 1/2 cable gland
• Waterproof execution IP65
| Series | C04..Y |
|---|---|
| Product type | Capillary thermostat |
| Min. measurement range (°C) | 10 |
| Max. measurement range (°C) | 90 |
| Changeover contact | 10 (2,5) A, 250V AC |
| Material (sensor) | Copper |
| IP-Class | IP65 |
| Brand | Fantini Сosmi |
