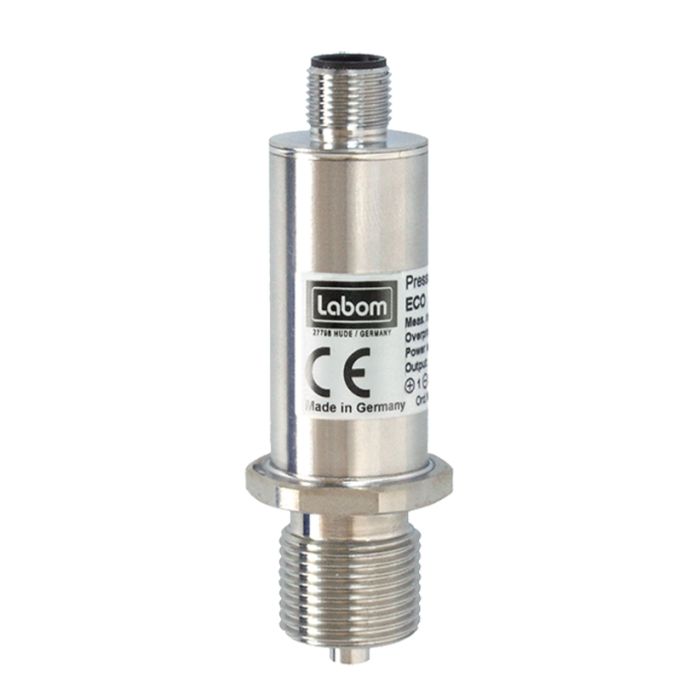

Pressure transmitter Labom CA110-1.9A

Lead time if the product is out of stock (business days):

35
CA110 ECO digital pressure transmitter 4–20 mA, G ¼"

Features:

• Digital pressure transmitter
• Measuring ranges 0...600 bar, -1...0 - 1...15 bar
• Accuracy ≤ 0.5%
• Output signal 4...20 mA, 2-wire connector M12
• Stainless steel AISI 304
• Protection class IP 65
• Wetted parts AISI 304
• Medium temperature –20…120 °C
• Easy 0-point setting with a magnet

Options:

• Several different process connection options
• Reverse output (20...4 mA)
• Thread connection options G½”, NPT ½”
Technical characteristics
Series CA11xx
Product type Pressure transmitter
Min. measurement range, bar -1.00
Max. measurement range, bar 9.00
Min. ambient temperature, °C -20.00
Max. ambient temperature, °C 120.00
Process connection G 1/4"
Sensor material Ceramic
Output signal 4... 20mA
Connector type M12x1
IP-Class IP68
WRAS No
SIL No
Manufacturer Labom
Manufacturer code CA110-1.9A
