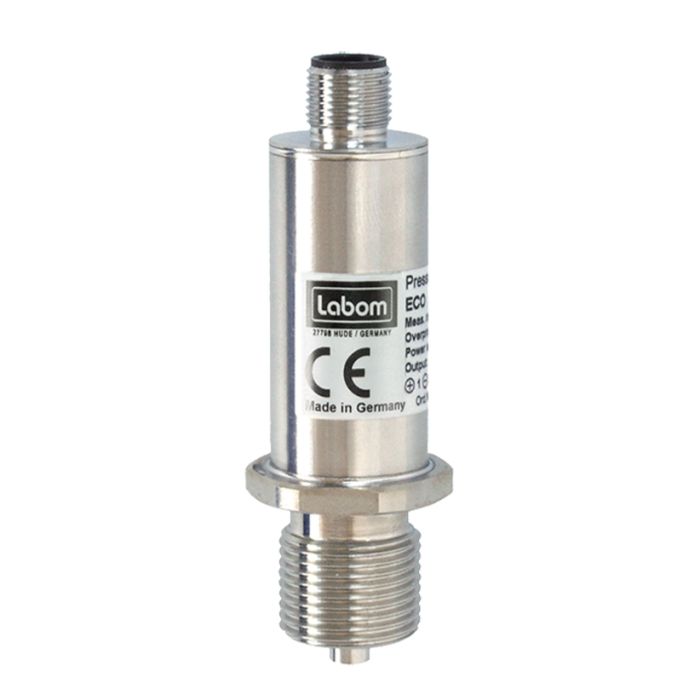

Pressure transmitter Labom CA1100
Lead time if the product is out of stock (business days):
35
Type series CA1100
Pressure transmitter COMPACT ECOnomic with threaded connection.
The pressure transmitter COMPACT ECOnomic is suitable for measuring the relative and absolute pressure of gases, vapors and liquids.
• Digital pressure transmitter
• Case and wetted parts of stainless steel, degree of protection IP65/IP67
• Measuring ranges:
◦ 0…1 bar up to 0…1000 bar
◦ -1…0 bar up to -1…15 bar
• Output signal 4…20 mA, 2-wire technology
• Accuracy ≤ 0.5 %
• Easy zero point correction using a magnet
• Media temperature -40…120 °C
Pressure transmitter COMPACT ECOnomic with threaded connection.
The pressure transmitter COMPACT ECOnomic is suitable for measuring the relative and absolute pressure of gases, vapors and liquids.
• Digital pressure transmitter
• Case and wetted parts of stainless steel, degree of protection IP65/IP67
• Measuring ranges:
◦ 0…1 bar up to 0…1000 bar
◦ -1…0 bar up to -1…15 bar
• Output signal 4…20 mA, 2-wire technology
• Accuracy ≤ 0.5 %
• Easy zero point correction using a magnet
• Media temperature -40…120 °C
| Series | CA1100 |
|---|---|
| Product type | Pressure transmitter |
| Min measurement range (bar) | 0 |
| Max measurement range (bar) | 1000 |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/4" |
| Output signal | 4...20mA |
| Connector type | M12x1 |
| Material (sensor) | AISI630 |
| IP-class | IP67 |
| Brand | Labom |
