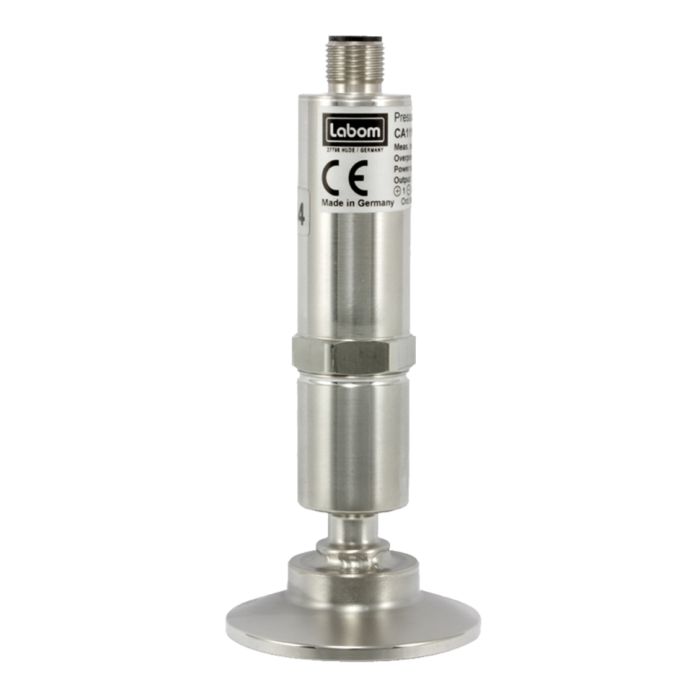

Pressure transmitter Labom CA1110
Lead time if the product is out of stock (business days):
35
Digital pressure transmitter CA1110 COMPACT ECO.
• Hygienic design according to EHEDG, selected process connections with EHEDG certificate
• Case and wetted parts of stainless steel, degree of protection IP65/IP67
• Measuring ranges:
0…1 bar up to 0…40 bar
-1…0 bar up to -1…15 bar
• Output signal 4…20 mA, 2-wire technology
• Material certificate as per EN 10204-3.1
• Roughness height rating with inspection certificate acc. to EN 10204-3.1
• Output signal (invers) 20…4 mA
• Accuracy ≤ 0.3 %
• Hygienic design according to EHEDG, selected process connections with EHEDG certificate
• Case and wetted parts of stainless steel, degree of protection IP65/IP67
• Measuring ranges:
0…1 bar up to 0…40 bar
-1…0 bar up to -1…15 bar
• Output signal 4…20 mA, 2-wire technology
• Material certificate as per EN 10204-3.1
• Roughness height rating with inspection certificate acc. to EN 10204-3.1
• Output signal (invers) 20…4 mA
• Accuracy ≤ 0.3 %
| Series | CA1110 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range (bar) | -1 |
| Max. measurement range (bar) | 40 |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 140 |
| Output signal | 4...20mA |
| Connector type | M12x1 |
| Certifications | SIL |
| IP-Class | IP67 |
| SIL | Yes |
| Brand | Labom |
