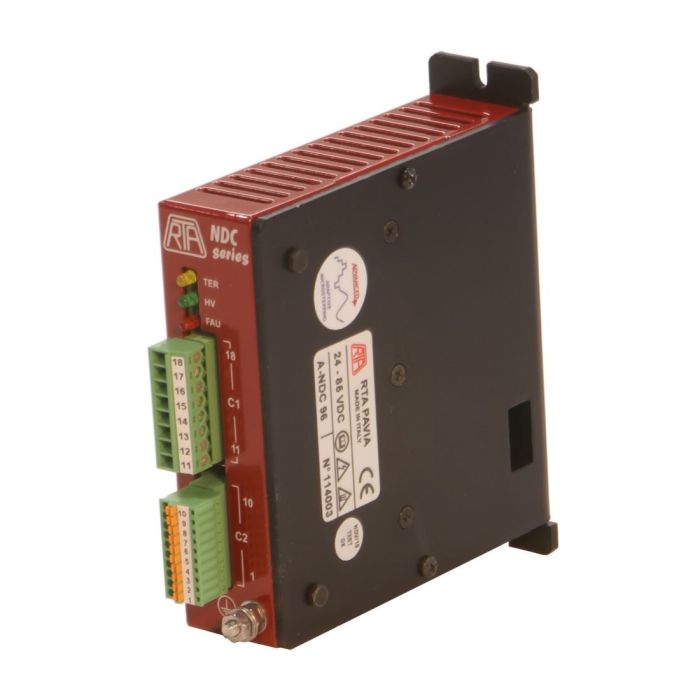

Stepper motor drive RTA A-NDC 96
Lead time if the product is out of stock (business days):
42
RTA Series A-NDC
The additional features of the A-NDC controller compared to the NDC version are:
• Adaptive micro stepping, max. 12,800 steps/lap
• Smart current profile management, thanks to which smooth movement is achieved along with lower temperatures
Technical features:
• Dimensions: 110 x 108 x 34 mm
• Wide operating voltage range: 24 – 85 VDC
• Step 400, 800, 1600, 3200 and 500, 1000, 2000, 4000 steps/revolution
• Motor phase current can be set to eight values
• Automatic current drop when the motor is not used
• Opto-separated inputs enable connection to various control systems
• Possibility to turn off the motor with an external logic signal
• Stepper motor output short-circuit protected
• Protected against under and over voltage
• Protected against overheating
• Operation with one external operating voltage
• With a high-efficiency CHOPPER MOSFET power stage
• The electronic resonance damping function reduces acoustic noise and mechanical vibration at low and medium frequencies
• Model without casing available A-NDC 06.V
The additional features of the A-NDC controller compared to the NDC version are:
• Adaptive micro stepping, max. 12,800 steps/lap
• Smart current profile management, thanks to which smooth movement is achieved along with lower temperatures
Technical features:
• Dimensions: 110 x 108 x 34 mm
• Wide operating voltage range: 24 – 85 VDC
• Step 400, 800, 1600, 3200 and 500, 1000, 2000, 4000 steps/revolution
• Motor phase current can be set to eight values
• Automatic current drop when the motor is not used
• Opto-separated inputs enable connection to various control systems
• Possibility to turn off the motor with an external logic signal
• Stepper motor output short-circuit protected
• Protected against under and over voltage
• Protected against overheating
• Operation with one external operating voltage
• With a high-efficiency CHOPPER MOSFET power stage
• The electronic resonance damping function reduces acoustic noise and mechanical vibration at low and medium frequencies
• Model without casing available A-NDC 06.V
| Series | A-NDC |
|---|---|
| Product type | Askelmoottoriohjain |
| Min. current (A) | 1.9 |
| Max. current (A) | 6 |
| Supply voltage | 24-85V DC |
| Brand | RTA |
