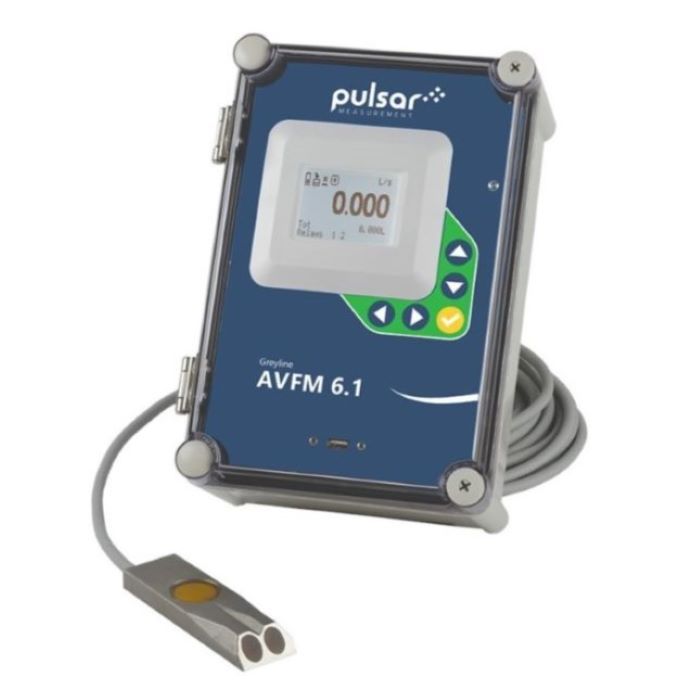

Ultrasonic flow meter Pulsar AVFM6.1
Lead time if the product is out of stock (business days):
35Pulsar Series AVFM6.1
• Ultrasonic flowmeters are based on the transit time of ultrasound. This means that a pair of sensors are installed on the outside of the tube, which are used to generate ultrasonic pulses. These signals pass through the pipe wall and the medium in the direction of the flow medium to one sensor and from the other sensor back against the flow direction.
• The basic principle of ultrasonic flow measurement is that sound waves traveling in the direction of flow move faster than those traveling against the direction of flow. The difference in the travel time of the ultrasound signal is directly proportional to the fluid flow rate.
• Factors affecting ultrasonic flow measurement such as flow profile, liquid properties, pipe material, lining and liquid temperature are compensated with electronics, resulting in a reliable measurement.
• Ultrasonic flowmeters are based on the transit time of ultrasound. This means that a pair of sensors are installed on the outside of the tube, which are used to generate ultrasonic pulses. These signals pass through the pipe wall and the medium in the direction of the flow medium to one sensor and from the other sensor back against the flow direction.
• The basic principle of ultrasonic flow measurement is that sound waves traveling in the direction of flow move faster than those traveling against the direction of flow. The difference in the travel time of the ultrasound signal is directly proportional to the fluid flow rate.
• Factors affecting ultrasonic flow measurement such as flow profile, liquid properties, pipe material, lining and liquid temperature are compensated with electronics, resulting in a reliable measurement.
Series | AVFM6.1 |
---|---|
Product type | Ultrasonic flow meter |
Min. mean temperature (°C) | -20 |
Max. mean temperature (°C) | 60 |
Display | Backlit LCD display |
Material (housing) | Polycarbonate |
Tube size | 25.4mm...4600mm |
Power supply | 100-240V AC, 50/60Hz, 9-32V DC |
Power consuption | <10W |
IP-Class | IP66 |
Brand | Pulsar |
