Differential pressure transmitter Labom Ci4300
Lead time if the product is out of stock (business days):
5

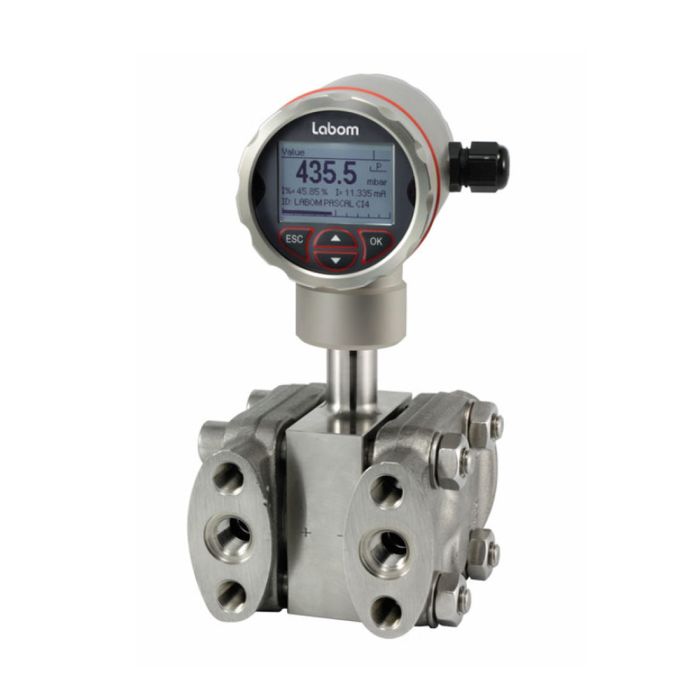

PASCAL CI4300 Digital differential pressure transmitter with ¼”-NPT threaded process
• Differential pressure transmitter suitable for measuring relative and absolute pressures of gases, steam and liquids
• Robust housing made of stainless steel 1.4301 IP65/IP67
• Accuracy: ≤ 0,1%
• High-resolution graphic display with intuitive 4-button operation and backlight
• Nominal range: 0,25-40 bar
• Turndown: up to 100:1
• Measuring rate: up to 100 Hz
• Output signal: 4…20 mA with HART® protocol
• Configuration memory
• Media temperature: -40…100 °C
• Available approvals: NAMUR 95, SIL2, ATEX, IECx, UKEX
General applications:
• General process engineering
• Chemical and petrochemical industry
• General process technology
• Differential pressure transmitter suitable for measuring relative and absolute pressures of gases, steam and liquids
• Robust housing made of stainless steel 1.4301 IP65/IP67
• Accuracy: ≤ 0,1%
• High-resolution graphic display with intuitive 4-button operation and backlight
• Nominal range: 0,25-40 bar
• Turndown: up to 100:1
• Measuring rate: up to 100 Hz
• Output signal: 4…20 mA with HART® protocol
• Configuration memory
• Media temperature: -40…100 °C
• Available approvals: NAMUR 95, SIL2, ATEX, IECx, UKEX
General applications:
• General process engineering
• Chemical and petrochemical industry
• General process technology
| Series | Ci4 |
|---|---|
| Product type | Differential pressure transmitter |
| Brand | Labom |
