Differential pressure transmitter Labom Ci4340
Lead time if the product is out of stock (business days):
35

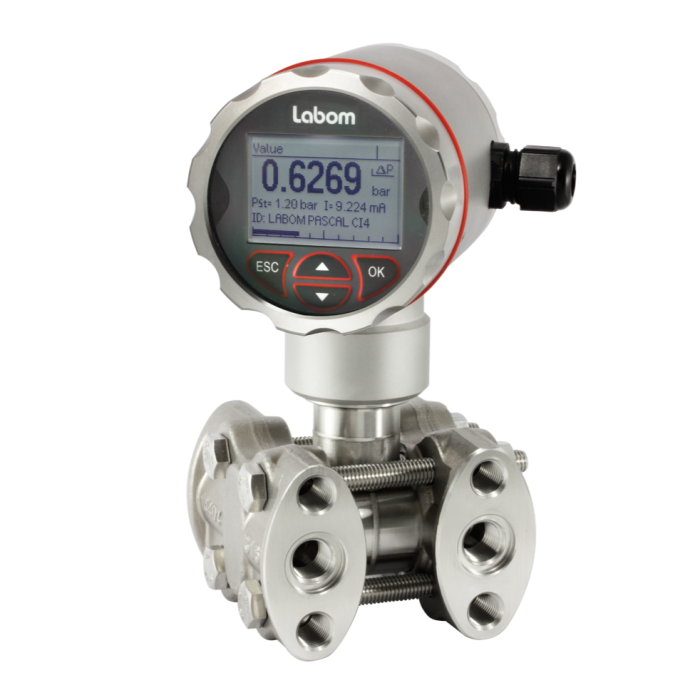

PASCAL CI4340 Digital differential pressure transmitter for high static working pressure
• Differential pressure transmitter suitable for measuring relative and absolute pressures of gases, steam and liquids
• Robust housing made of stainless steel 1.4301 IP65/ IP67
• Accuracy: ≤ 0,1%
• High-resolution graphic display with intuitive 4-button operation and backlight • Maximum working pressure 400 bar
• Nominal range: 0,10 bar - 16 bar
• Turndown: up to 100:1
• Measuring rate: up to 50 Hz
• Output signal: 4…20 mA with HART® protocol
• Configuration memory
• Media temperature: -40…100 °C
• Available approvals: SIL2, ATEX, IECx, UKEX
General applications:
• Water treatment
• Chemical and petrochemical industry
• General process technology
• Differential pressure transmitter suitable for measuring relative and absolute pressures of gases, steam and liquids
• Robust housing made of stainless steel 1.4301 IP65/ IP67
• Accuracy: ≤ 0,1%
• High-resolution graphic display with intuitive 4-button operation and backlight • Maximum working pressure 400 bar
• Nominal range: 0,10 bar - 16 bar
• Turndown: up to 100:1
• Measuring rate: up to 50 Hz
• Output signal: 4…20 mA with HART® protocol
• Configuration memory
• Media temperature: -40…100 °C
• Available approvals: SIL2, ATEX, IECx, UKEX
General applications:
• Water treatment
• Chemical and petrochemical industry
• General process technology
| Series | Ci4 |
|---|---|
| Product type | Differential pressure transmitter |
| Explosion-proof | Yes |
| Brand | Labom |
