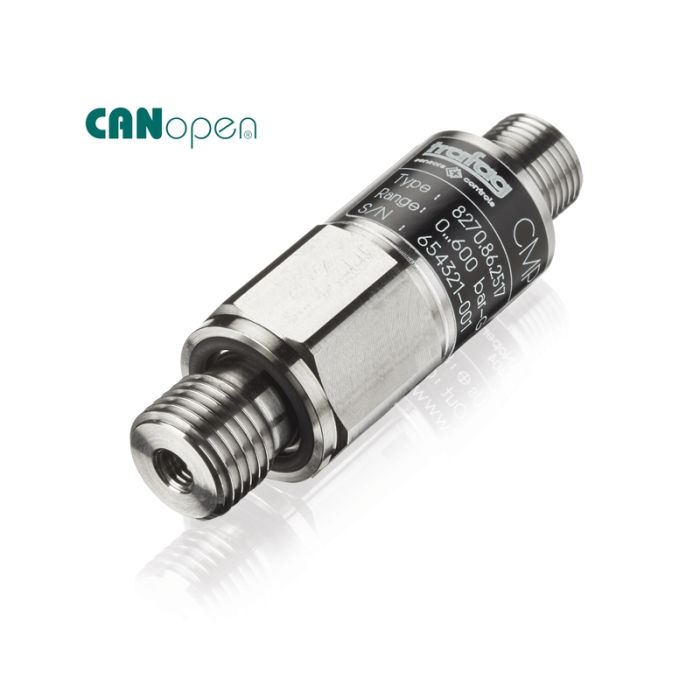

Pressure transmitter Trafag CMP8270
Lead time if the product is out of stock (business days):
35
CANopen pressure transmitter, G ¼" external thread.
The smallest pressure transmitter on the market that measures both pressure and temperature.
• Small and robust construction
• Also suitable for high temperatures
• EMC protection, IEC 61000
• CANopen bus protocol DS 301 / DS 404
• Supports CAN 2.0 A/B
• Option, accuracy ± 0.15% FS
• LSS (DS305V2.0)
Operating voltage: 9...32 VDC
Sensor material: W1.4542 / AISI 630
Operating temperature: -40...+125 °C
Medium temperature: -50...+135 °C
The smallest pressure transmitter on the market that measures both pressure and temperature.
• Small and robust construction
• Also suitable for high temperatures
• EMC protection, IEC 61000
• CANopen bus protocol DS 301 / DS 404
• Supports CAN 2.0 A/B
• Option, accuracy ± 0.15% FS
• LSS (DS305V2.0)
| Model | Range bar | Range °C | Max. working pressure bar | Accuracy from full range NLH |
| CMP4.0M | 0...4 | -40…+125 | 12 | ± 0,2 % |
| CMP6.0M | 0...6 | -40…+125 | 12 | ± 0,2 % |
| CMP10.0M | 0...10 | -40…+125 | 20 | ± 0,2 % |
| CMP16.0M | 0...16 | -40…+125 | 32 | ± 0,2 % |
| CMP25.0M | 0...25 | -40…+125 | 50 | ± 0,2 % |
| CMP40.0M | 0...40 | -40…+125 | 80 | ± 0,2 % |
| CMP100.0M | 0...100 | -40…+125 | 200 | ± 0,2 % |
| CMP250.0M | 0...250 | -40…+125 | 500 | ± 0,2 % |
| CMP400.0M | 0...400 | -40…+125 | 800 | ± 0,2 % |
Operating voltage: 9...32 VDC
Sensor material: W1.4542 / AISI 630
Operating temperature: -40...+125 °C
Medium temperature: -50...+135 °C
| Series | CMP 8270 |
|---|---|
| Product type | Pressure transmitter |
| Min measurement range (bar) | 0 |
| Max measurement range (bar) | 600 |
| Min. ambient temperature (°C) | -25 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/4" |
| Output signal | CANopen |
| Connector type | M12x1 |
| Material (sensor) | AISI630 |
| IP-class | IP67 |
| Brand | Trafag |
