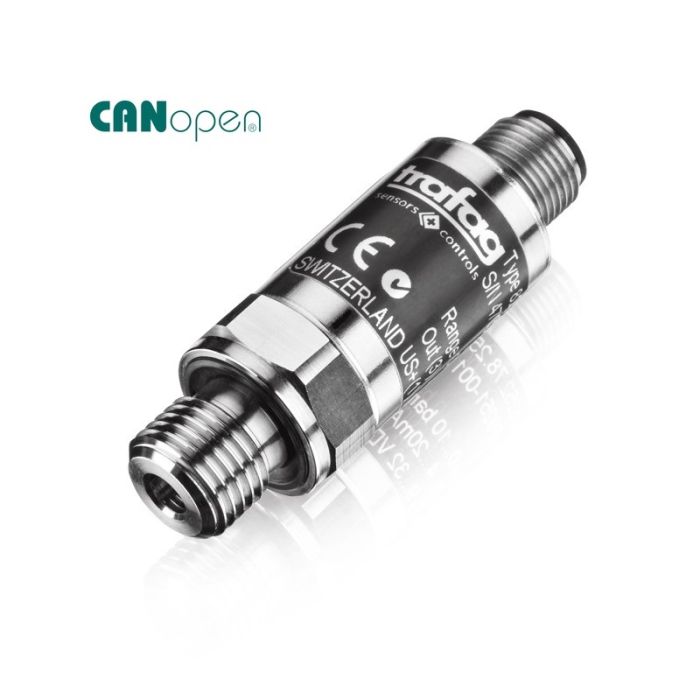

Pressure transmitter Trafag CMP8271
Lead time if the product is out of stock (business days):
35CANopen pressure transmitter, G ¼" external thread.
The smallest pressure transmitter on the market that measures both pressure and temperature.
• Small and robust construction
• Also suitable for high temperatures
• EMC protection, IEC 61000
• CANopen bus protocol DS 301 / DS 404
• Supports CAN 2.0 A/B
• Option, accuracy ± 0.15% FS
• LSS (DS305V2.0)
Operating voltage: 9...32 VDC
Sensor material: W1.4542 / AISI 630
Operating temperature: -40...+125 °C
Medium temperature: -50...+135 °C
The smallest pressure transmitter on the market that measures both pressure and temperature.
• Small and robust construction
• Also suitable for high temperatures
• EMC protection, IEC 61000
• CANopen bus protocol DS 301 / DS 404
• Supports CAN 2.0 A/B
• Option, accuracy ± 0.15% FS
• LSS (DS305V2.0)
Model | Range bar | Range °C | Max. working pressure bar | Accuracy from full range NLH |
CMP2.5M | 0...2,5 | -40…+125 | 7,5 | ± 0,5 % |
CMP4.0M | 0...4 | -40…+125 | 12 | ± 0,5 % |
CMP6.0M | 0...6 | -40…+125 | 18 | ± 0,5 % |
CMP10.0M | 0...10 | -40…+125 | 30 | ± 0,5 % |
CMP16.0M | 0...16 | -40…+125 | 48 | ± 0,5 % |
CMP25.0M | 0...25 | -40…+125 | 75 | ± 0,5 % |
CMP40.0M | 0...40 | -40…+125 | 120 | ± 0,5 % |
CMP100.0M | 0...100 | -40…+125 | 300 | ± 0,5 % |
CMP250.0M | 0...250 | -40…+125 | 750 | ± 0,5 % |
CMP400.0M | 0...400 | -40…+125 | 1000 | ± 0,5 % |
CMP600.0M | 0...600 | -40…+125 | 1200 | ± 0,5 % |
Operating voltage: 9...32 VDC
Sensor material: W1.4542 / AISI 630
Operating temperature: -40...+125 °C
Medium temperature: -50...+135 °C
Series | CMP 8271 |
---|---|
Product type | Pressure transmitter |
Min. measurement range (bar) | 0 |
Max. measurement range (bar) | 600 |
Min. ambient temperature (°C) | -40 |
Max. ambient temperature (°C) | 125 |
Process connection | G1/4" |
Output signal | CANopen |
Connector type | M12x1 |
Material (sensor) | AISI630 |
IP-class | IP67 |
Brand | Trafag |
