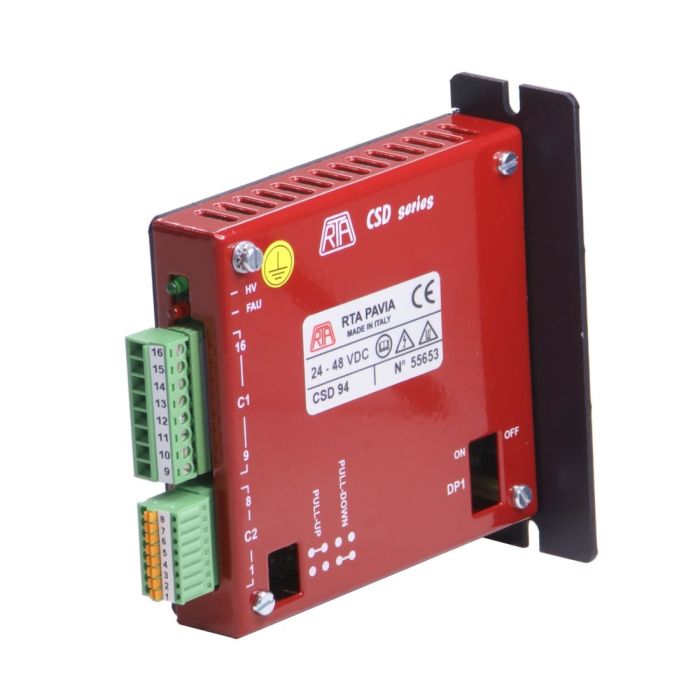

Stepper motor drive RTA CSD 94

Lead time if the product is out of stock (business days):

RTA Series CSD

• Dimensions: 99 x 90 x 21 mm
• Wide operating voltage range: 24 – 45 VDC
• Step 400, 800, 1600, 3200 steps/revolution
• Motor phase current can be set to four values
• Possible to use "Pull-up & Pull-down" inputs
• Automatic current drop when the motor is not used
• Possibility to turn off the motor with an external logic signal
• Stepper motor output short-circuit protected
• Protected against under and over voltage
• Operation with one external operating voltage
• With a high-efficiency CHOPPER MOSFET power stage
• The electronic resonance damping function reduces the acoustic noise and mechanical vibration at low and medium frequencies
• Terminal block (screw-type), standard model
• Optionally also with connector
• Easy-to-use and cost-effective solution
• Also available without outer case, CSD 04.V
Technical specifications
Series CSD
Product type Askelmoottoriohjain
Min. current (A) 2.6
Max. current (A) 4.4
Supply voltage 24-45V DC
Brand RTA
