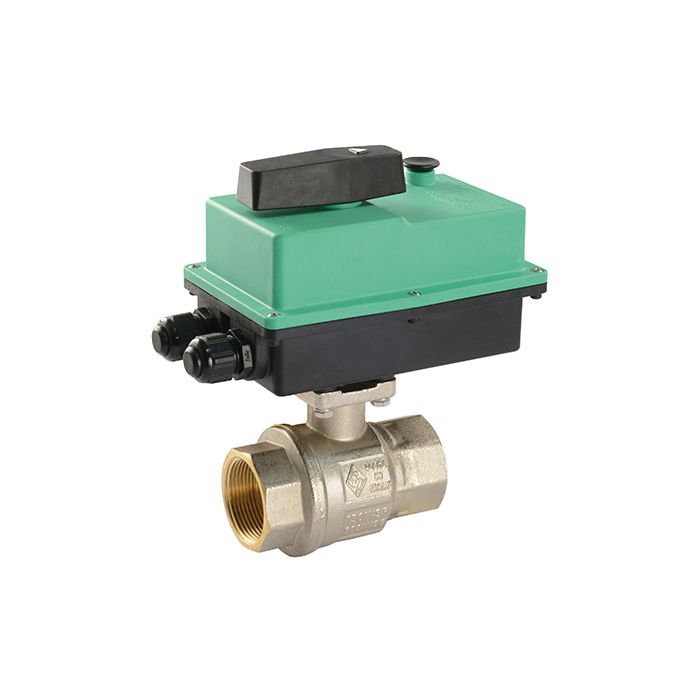

Electric actuated ball valve Comparato Nello CY222AD2M5
Lead time if the product is out of stock (business days):
16Comparato Series Compact
• Systems using alternative energy
• Automation systems
• Glycol cooling systems
• Heating/cooling systems
• Open and closed hydraulic systems
• Industrial systems using hot and cold fluids
• Water treatment systems
• Compressed air systems
• The 2-way and 3-way ball valves, in combination with
the suitable actuator of the PRO range, are used to
intercept, divert, regulate and mix fluids.
• Systems using alternative energy
• Automation systems
• Glycol cooling systems
• Heating/cooling systems
• Open and closed hydraulic systems
• Industrial systems using hot and cold fluids
• Water treatment systems
• Compressed air systems
• The 2-way and 3-way ball valves, in combination with
the suitable actuator of the PRO range, are used to
intercept, divert, regulate and mix fluids.
Series | COMPACT |
---|---|
Valve function | ON/OFF |
Min. ambient temperature (°C) | -10 |
Max. ambient temperature (°C) | 50 |
Min. fluid temperature (°C) | -10 |
Max. fluid temperature (°C) | 100 |
Flow-through factor (Kv, m3/h) | 89 |
Normal position | U Universal |
Material | Niklattu messinki |
IP-Class | IP67 |
Explosion-proof version | No |
Pipe size | 1 1/4" |
Max. pressure (bar) | 40 |
Rated torque (Nm) | 22 |
Operating time (s) | 45 |
Manufacturer | Comparato |
HVAC | 3702330 |
Electrical number | 2825216 |
Manufacturer code | CY222AD2M5 |
