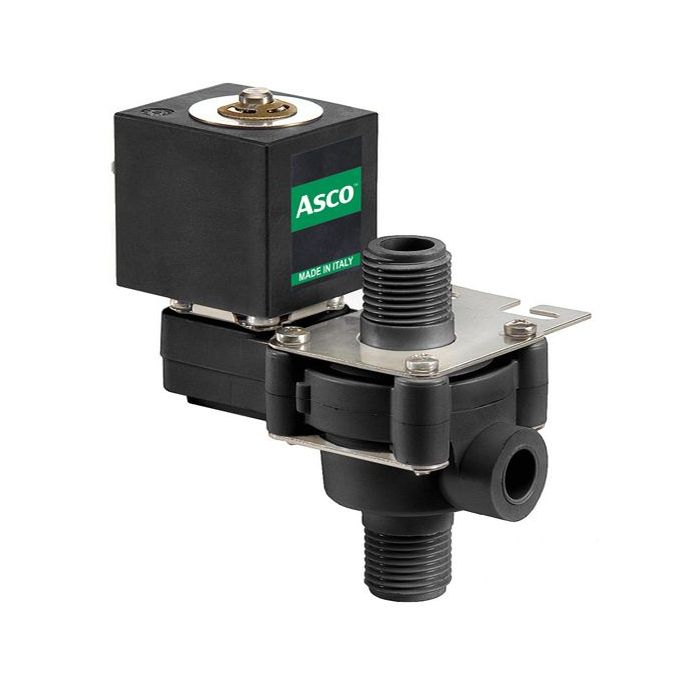

Electromagnetic solenoid valve ASCO D132V23-Z130A G1/2x9 V24/50Hz
Lead time if the product is out of stock (business days):
30
ASCO Series D132
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids.
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator.
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries.
• This valve is delivered with a connector.
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids.
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator.
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries.
• This valve is delivered with a connector.
| Series | D132 |
|---|---|
| Product type | 2-way solenoid valve |
| Material (body) | Plastic |
| Valve function | 2-way normally closed NC |
| Media | Water, air, oil |
| Size | 1/2" |
| Supply voltage | 24V AC |
| Frequency | 50Hz |
| Flow-through factor (Kv, m3/h) | 1.6 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. fluid temperature (°C) | -10 |
| Max. fluid temperature (°C) | 90 |
| Min. pressure (bar) | 0 |
| Max. pressure (bar) | 1.6 |
| IP-Class | IP65 |
| Brand | ASCO |
