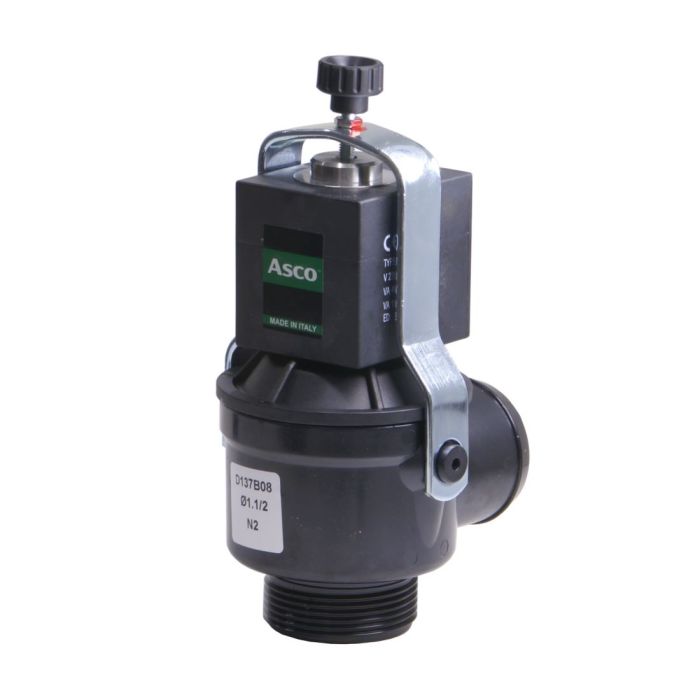

Solenoid valve ASCO D137B4JY923S5G

Lead time if the product is out of stock (business days):

General features of D series valves:
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries

Features D136/D137:
• Size: D136 - straight hose connector 13.5mm. D137 - direct, size 1½"-2", DN40-DN50
• Fluids: water, air, oil and inert gases
• MATERIALS IN CONTACT WITH FLUID: PPS (polyphenylene sulfide) reinforced). Seals: D132 - EPDM, FPM or SBR. D332 – FPM.
• This valve is delivered with a connector

Technical data:
• Maximum pressure (PS): 0.5/0.3 bar
• Opening time: 40/400 ms
• Closing time: 40/400 ms
• Fluid temperature: +10/-10… 90 °C
• Maximum viscosity: 37 cSt (mm2/s)
Technical specifications
Series D137
Product type 2-way solenoid valve
Material (body) Plastic
Valve function 2-way normally closed NC
Media Water, air, oil
Size 2"
Supply voltage 230V AC
Frequency 50Hz
Flow-through factor (Kv, m3/h) 34
Min. ambient temperature (°C) -10
Max. ambient temperature (°C) 60
Min. fluid temperature (°C) -10
Max. fluid temperature (°C) 90
Min. pressure (bar) 0.35
Max. pressure (bar) 15
IP-Class IP65
Brand ASCO
