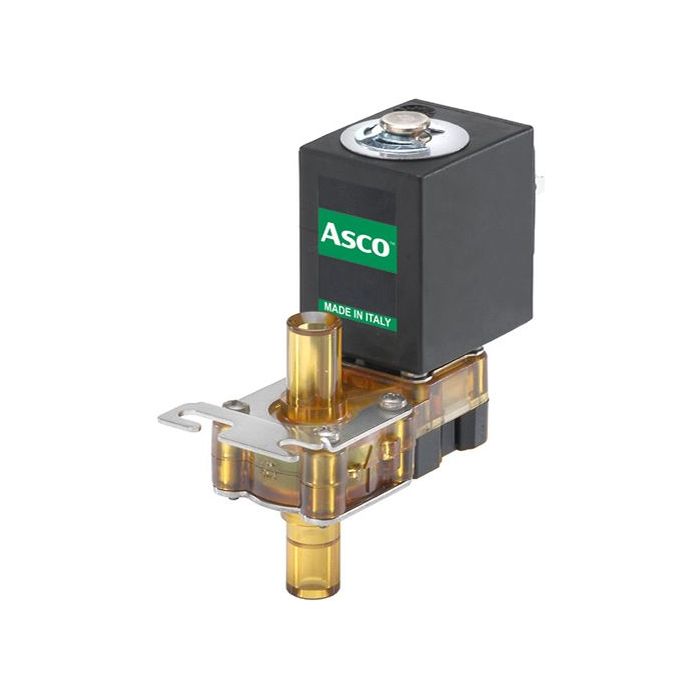

Solenoid valve ASCO D144DGBQ530E5A
Lead time if the product is out of stock (business days):
76
General features of D series valves:
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries
Features D144:
• Direct acting, fully isolated
• Fluids: water, air, oil and inert gases
• The valve's anchor mechanism is completely insulated, so the fluid is in contact only with the membrane and the body. The anchor has very low friction thanks to the PTFE coating.
• MATERIALS IN CONTACT WITH THE FLUID: Housing PEI (polythermide), Seals SBR, EPDM, FPM or VMQ
• The valve is delivered with a connector
Technical data:
• Maximum pressure (PS): 12 bar
• Opening time: 25 ms
• Closing time: 25 ms
• Fluid temperature: –10… 100 °C
• Maximum viscosity: 37 cSt (mm2/s)
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries
Features D144:
• Direct acting, fully isolated
• Fluids: water, air, oil and inert gases
• The valve's anchor mechanism is completely insulated, so the fluid is in contact only with the membrane and the body. The anchor has very low friction thanks to the PTFE coating.
• MATERIALS IN CONTACT WITH THE FLUID: Housing PEI (polythermide), Seals SBR, EPDM, FPM or VMQ
• The valve is delivered with a connector
Technical data:
• Maximum pressure (PS): 12 bar
• Opening time: 25 ms
• Closing time: 25 ms
• Fluid temperature: –10… 100 °C
• Maximum viscosity: 37 cSt (mm2/s)
| Series | D144 |
|---|---|
| Product type | 2-way solenoid valve |
| Material (body) | Plastic |
| Valve function | 2-way normally closed NC |
| Media | Water |
| Size | 1/4" |
| Supply voltage | 24V AC |
| Frequency | 50Hz |
| Flow-through factor (Kv, m3/h) | 0.55 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. fluid temperature (°C) | -10 |
| Max. fluid temperature (°C) | 100 |
| Min. pressure (bar) | 0 |
| Max. pressure (bar) | 4.5 |
| IP-Class | IP65 |
| Brand | ASCO |
