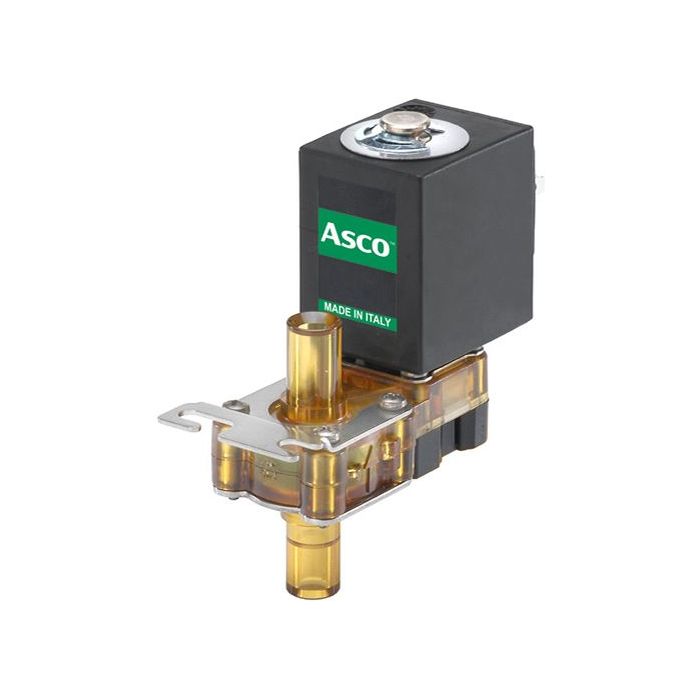

Electromagnetic solenoid valve Asco D144V4 Z530A 1/4"-5.5 230V/50Hz
Lead time if the product is out of stock (business days):
129
ASCO Series D144
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids.
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator.
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries.
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids.
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator.
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries.
| Series | D144 |
|---|---|
| Product type | 2-way solenoid valve |
| Features | Direct acting - Total isolation |
| Min. ambient temperature, °C | -10.00 |
| Max. ambient temperature, °C | 60.00 |
| Min. medium temperature, °C | -10.00 |
| Max. medium temperature, °C | 100.00 |
| Min. pressure, bar | 0.35 |
| Max. pressure, bar | 16.00 |
| Pipe size | 1/4" |
| Orifice size Ø | 5.50 |
| Body | D144V4 |
| Coil | Z530A |
| Function | NC - de-energize Close |
| Supply voltage | 230V/50Hz |
| Material | PEI |
| Sealing material | FPM |
| IP-Class | IP65 |
| Medium | Water, Air, Oil |
| WRAS | No |
| SIL | No |
| Manufacturer | ASCO |
| HVAC | 4125057 |
| Electrical number | 2802353 |
| Manufacturer code | D144V9BQ530S5A |
