Protection tube | Termotech | D4 |
Lead time if the product is out of stock (business days):
32

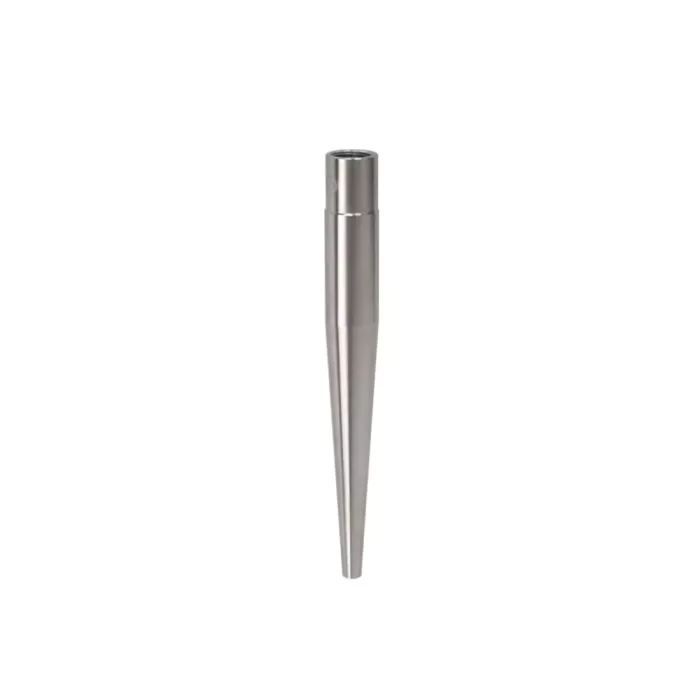

D4 Thermowell weld-in type per DIN 43772 solid drilled, female thread M18x1.5
L=200mm U=65mm ø24mm
AISI316Ti Materials
material-no. SS 1.4571 T max. 550°C P max. 150 bar
Other materials upon request.
With material certificate per DIN EN 10204-3.1 and are suitable for connection to Zone 0
L=200mm U=65mm ø24mm
AISI316Ti Materials
material-no. SS 1.4571 T max. 550°C P max. 150 bar
Other materials upon request.
With material certificate per DIN EN 10204-3.1 and are suitable for connection to Zone 0
| Series | D4 |
|---|---|
| Product type | Protection tube |
| Process connection | Weld in |
| Material (sensor) | AISI316Ti |
| Brand | Termotech |
