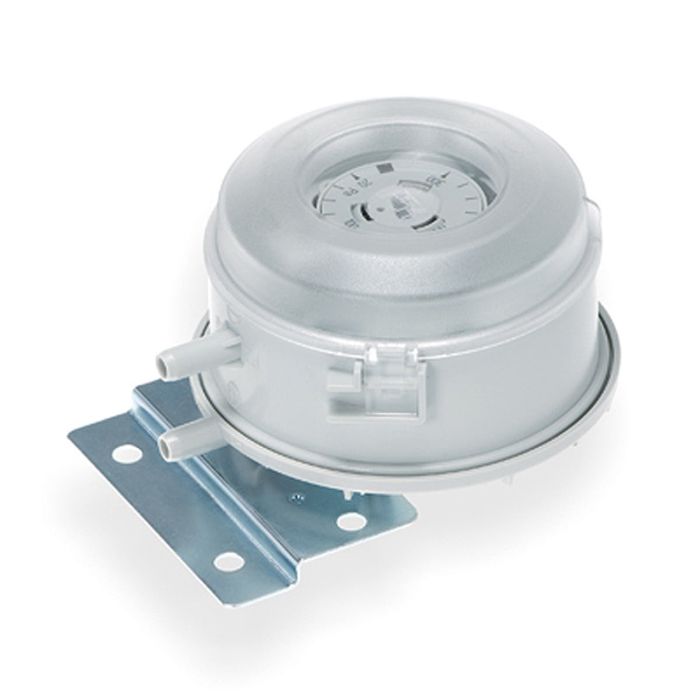

Differential pressure switch (diff. pressostat) Huba Control 604.9110020 50...500 Pa
Lead time if the product is out of stock (business days):
22
DTV over, under or differential pressure switch HUBA CONTROL, adjustment range 50-500Pa, with fixed differential range, IP 54.
• Operating temperature: -20…85°C
• Filter watcher
• AC 250 V 5 (0.8) A
• Maximum pressure: 75mbar
• ø6.2mm hose with outlets
The mechanical differential pressure switch 604 is an ideal pressure switch for controlling air flow in air conditioners and ventilation systems, as well as for industrial air monitoring applications. The product family is divided into five pressure ranges, which makes selection and installation easy. + Easy and quick installation + User-friendly “snap-on” cover + Integrated draft eliminator PG11 + Laser-etched scale enabling high adjustment accuracy + Very good long-term stability + Multi-layer gold-plated replacement contact.
• Operating temperature: -20…85°C
• Filter watcher
• AC 250 V 5 (0.8) A
• Maximum pressure: 75mbar
• ø6.2mm hose with outlets
The mechanical differential pressure switch 604 is an ideal pressure switch for controlling air flow in air conditioners and ventilation systems, as well as for industrial air monitoring applications. The product family is divided into five pressure ranges, which makes selection and installation easy. + Easy and quick installation + User-friendly “snap-on” cover + Integrated draft eliminator PG11 + Laser-etched scale enabling high adjustment accuracy + Very good long-term stability + Multi-layer gold-plated replacement contact.
| Series | 604 |
|---|---|
| Product type | Differential pressure switch (diff. pressostat) |
| Min. measurement range (Pa) | 50 |
| Max. measurement range (Pa) | 500 |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 85 |
| Process connection | ∅6.2mm |
| Switching differential | 20Pa |
| IP-Class | IP54 |
| Brand | Huba Control |
