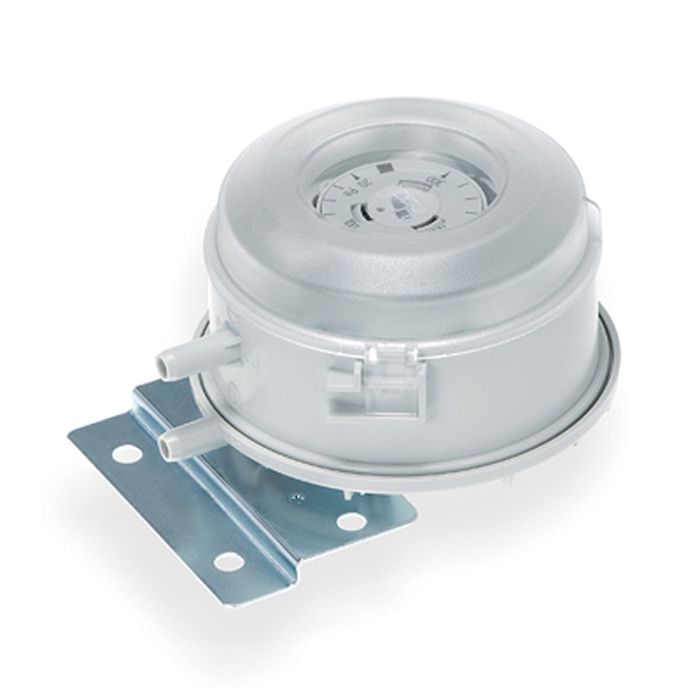

Differential pressure switch (diff. pressostat) Huba Control 604.9510020 1000...5000 Pa

Lead time if the product is out of stock (business days):

22
DTV over, under or differential pressure switch HUBA CONTROL, adjustment range 1000-5000Pa, with fixed differential range, IP 54.

• Operating temperature: -20…85°C
• Filter watcher
• AC 250 V 5 (0.8) A
• Maximum pressure: 75mbar
• ø6.2mm hose with outlets

The mechanical differential pressure switch 604 is an ideal pressure switch for controlling air flow in air conditioners and ventilation systems, as well as for industrial air monitoring applications. The product family is divided into five pressure ranges, which makes selection and installation easy. + Easy and quick installation + User-friendly “snap-on” cover + Integrated draft eliminator PG11 + Laser-etched scale enabling high adjustment accuracy + Very good long-term stability + Multi-layer gold-plated replacement contact.
Technical specifications
Series 604
Product type Differential pressure switch (diff. pressostat)
Min. measurement range (Pa) 1000
Max. measurement range (Pa) 5000
Min. ambient temperature (°C) -20
Max. ambient temperature (°C) 85
Process connection ∅6.2mm
Switching differential 200Pa
IP-Class IP54
Brand Huba Control
