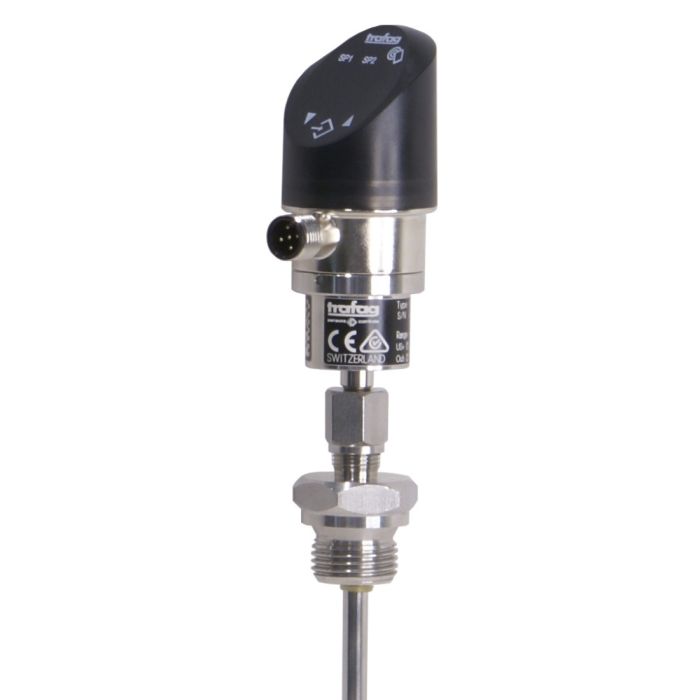

Temperature transmitter Trafag DTP8180-150
Lead time if the product is out of stock (business days):
30
DTP 8180 temperature switch.
• Parameterization also via NFC-smartphone App (Android)
• Display and electrical connection are independently rotatable 335°/343°
• Analogue output switchable mA or V
• Integrated datalogger
• Temperature measuring range adjustable, 50… 100 % of the nominal range
Application: machine tools, hydraulic power units, cooling and lubrication systems, HVAC, process technology.
• Parameterization also via NFC-smartphone App (Android)
• Display and electrical connection are independently rotatable 335°/343°
• Analogue output switchable mA or V
• Integrated datalogger
• Temperature measuring range adjustable, 50… 100 % of the nominal range
Application: machine tools, hydraulic power units, cooling and lubrication systems, HVAC, process technology.
| Series | DTP8180 |
|---|---|
| Product type | Temperature transmitter |
| Min. ambient temperature, °C | -25.00 |
| Max. ambient temperature, °C | 85.00 |
| Min. measurement range, °C | -50.00 |
| Max. measurement range, °C | 150.00 |
| Process connection | G 1/2" |
| Sensor material | AISI316L |
| IP-Class | IP67 |
| Output signal | 4...20mA |
| Supply voltage | 15... 30 VDC |
| Programmable | Kyllä |
| Dimensions | 6 mm x 150 mm |
| WRAS | No |
| SIL | No |
| Manufacturer | Trafag |
| HVAC | 4363201 |
| Electrical number | 3622100 |
| Manufacturer code | DTP8180-150 |
