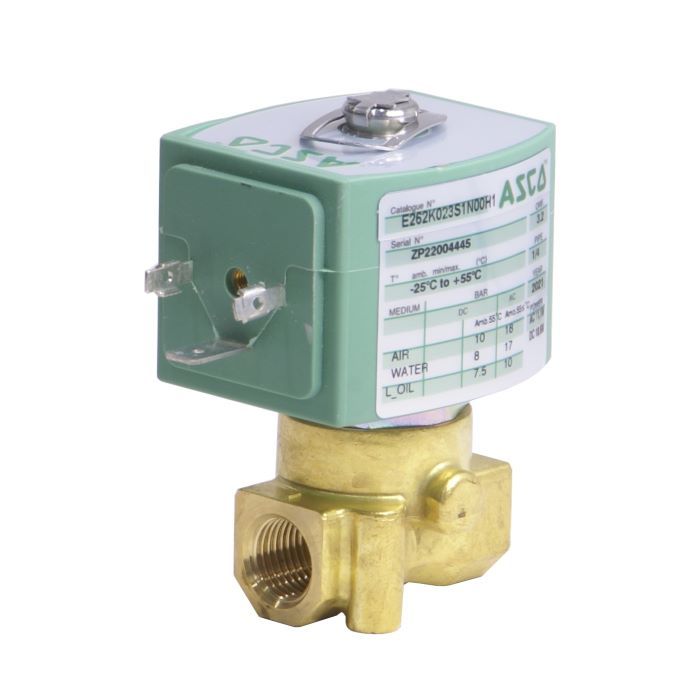

Solenoid valve ASCO E262K262S1N00F8
Lead time if the product is out of stock (business days):
35
ASCO series 262, also known as 8262, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, and cryogenic fluids.
Technical features:
• Operation: NC or NO
• Sizes: 1/8" to 1/4", DN6 to DN8
• For high operating pressure
• AC/DC coils can be changed (10.1W/11.6W and 17.1W/22.6W)
• Valves work with 0 pressure difference
• Body material: brass or stainless steel
• Wide range of sealing materials
• Suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others
Technical features:
• Operation: NC or NO
• Sizes: 1/8" to 1/4", DN6 to DN8
• For high operating pressure
• AC/DC coils can be changed (10.1W/11.6W and 17.1W/22.6W)
• Valves work with 0 pressure difference
• Body material: brass or stainless steel
• Wide range of sealing materials
• Suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others
| Series | E262 |
|---|---|
| Product type | 2-way solenoid valve |
| Material (body) | Brass |
| Valve function | 2-way normally open NO |
| Media | Water, air, oil |
| Size | 1/4" |
| Supply voltage | 230V AC |
| Frequency | 50Hz |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 75 |
| Min. fluid temperature (°C) | -25 |
| Max. fluid temperature (°C) | 80 |
| Min. pressure (bar) | 0.35 |
| Max. pressure (bar) | 12 |
| IP-Class | IP65 |
| Brand | ASCO |
