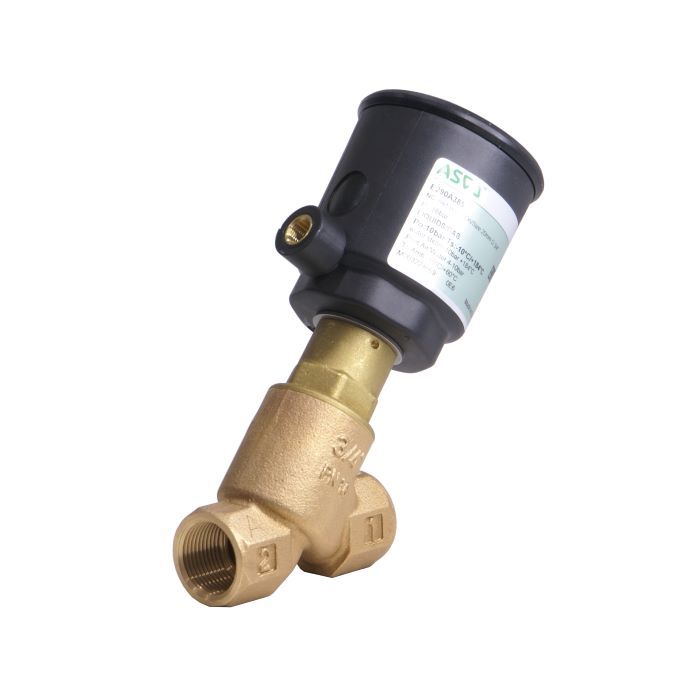

E290D0230DA0000 2/2 Vinoistukkaventtiili G1/2" Pronssi 0-16bar NC Muovitoimilaite D=50mm G1/8" Virtaus lautasen alta E290D-Srj
Lead time if the product is out of stock (business days):
11
E290D0230DA0000 290 SERIES NEXT GEN, CONNECTION TYPE: G/RP (COMBINATION OF ISO 228-1 & ISO 7-1), PRODUCT SERIES: 2 WAYS, FUNCTION: NORMALLY CLOSED, NOMINAL DIAMETER: 15MM - 1/2'', OPERATOR DIA - PILOTING CONNECTION DIA: Ø50MM - PILOT G1/8'' CONNECTION, PLASTIC ACTUA
| Series | 290 |
|---|---|
| Connection type | Thread |
| Valve function | NC |
| Actuator size Ø (mm) | 50 |
| Material (body) | Bronze |
| Connection size | 1/2" |
| Actuator | Polyamide (PA) |
| Media | Aggressive liquids/gases, air, inert gas, fuel oil, hot water, light oil, oxygen, steam, water |
| Sealing material | Polytetrafluorethylene (PTFE) |
| Flow-through factor (Kv, m3/h) | 5.8 |
| Min. pressure (mbar) | 10^-2 |
| Max. pressure, air (bar) | 16 |
| Max. pressure, liquids (bar) | 16 |
| Max. pressure, steam (bar) | 10 |
| Brand | ASCO |
