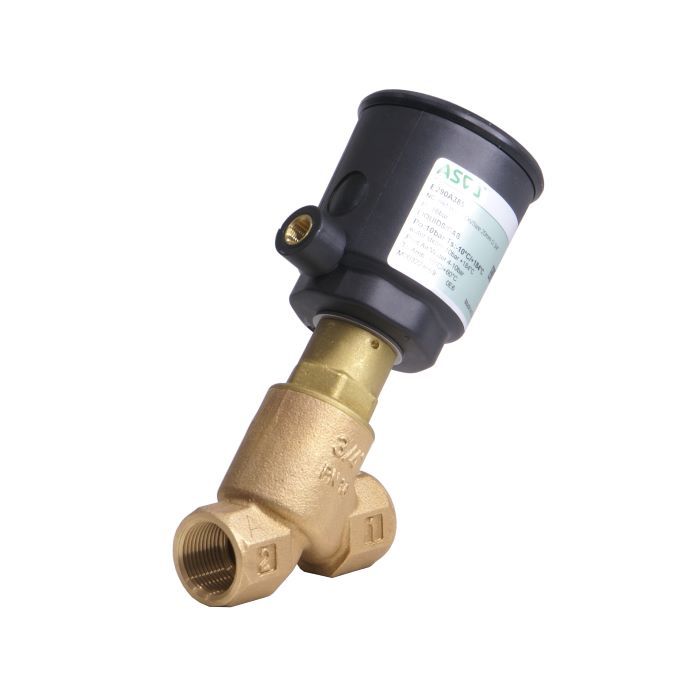

E290D0750DA0000 2/2 Vinoistukkaventtiili 2" Pronssi 0-2,5 Bar NC Muovitoimilaite D=63mm G1/8" Virtaus lautasen alta E290D-Srj
Lead time if the product is out of stock (business days):
15
E290D0750DA0000 290 Series Next Gen Connection G/RP (Combination of ISO 228-1 & ISO 7-1), Product Series 2 WAYS Function NC Nominal Diameter 50mm 2'' Operator Dia IA Piloting Connection DIA Ø63mm Pilot G1/8'' Connection Plastic Actuator
| Series | 290 |
|---|---|
| Connection type | Thread |
| Valve function | NC |
| Actuator size Ø (mm) | 63 |
| Material (body) | Bronze |
| Connection size | 2" |
| Actuator | Polyamide (PA) |
| Media | Aggressive liquids/gases, air, inert gas, fuel oil, hot water, light oil, oxygen, steam, water |
| Sealing material | Polytetrafluorethylene (PTFE) |
| Flow-through factor (Kv, m3/h) | 51.4 |
| Min. pressure (mbar) | 10^-2 |
| Max. pressure, air (bar) | 2.5 |
| Max. pressure, liquids (bar) | 2.5 |
| Max. pressure, steam (bar) | 2.5 |
| Brand | ASCO |
