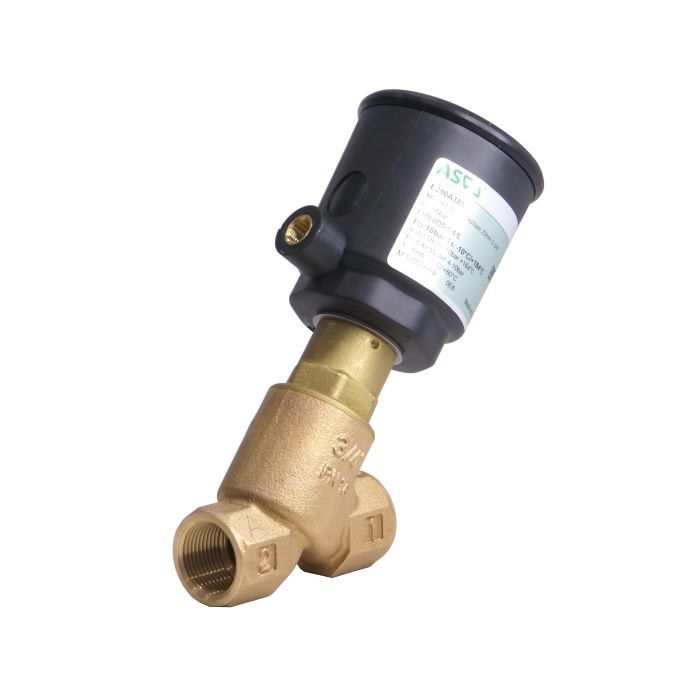

E290D3450DA0000 2/2 Vinoistukkaventtiili G1" Pronssi 0-10 Bar NC Muovitoimilaite D=63mm G1/8" Virtaus lautasen yläpuolelta E290D-Srj
Lead time if the product is out of stock (business days):
15
E290D3450DA0000 Next Gen Connection Type G/RP 2 Ways Normally Closed Above the Disc Nominal Diameter 25mm 1'' Operation Dia - Piloting Connection Dia Ø63mm Pilot G1/8'' Connection
| Series | 290 |
|---|---|
| Connection type | Thread |
| Valve function | NC |
| Actuator size Ø (mm) | 63 |
| Material (body) | Bronze |
| Connection size | 1" |
| Actuator | Polyamide (PA) |
| Media | Aggressive liquids/gases, air, inert gas, fuel oil, hot water, light oil, oxygen, steam, water |
| Sealing material | Polytetrafluorethylene (PTFE) |
| Flow-through factor (Kv, m3/h) | 18.4 |
| Min. pressure (mbar) | 10^-2 |
| Max. pressure, air (bar) | 10 |
| Max. pressure, steam (bar) | 10 |
| Brand | ASCO |
