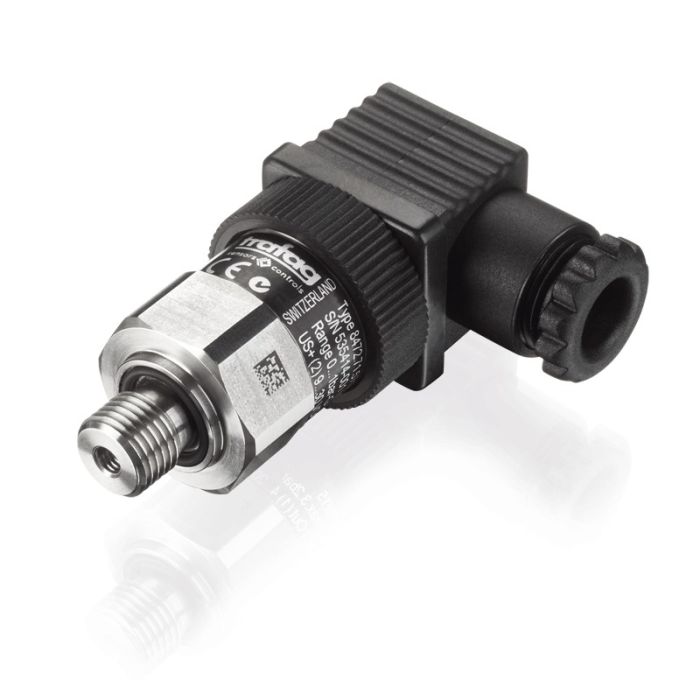

Pressure transmitter Trafag ECT0.2A
Lead time if the product is out of stock (business days):
35
ECT pressure transmitter 4 – 20 mA G ¼" external thread.
• Sensor material Ceramic, AISI 316L
• Max. working pressure 2 bar
• Operating temperature -25… +85°C
• Medium temperature -25… +125°C
• Operating voltage 9... 30 VDC
• EN 175301-803 with junction box
Also available are models for absolute pressure measurement.
• Sensor material Ceramic, AISI 316L
• Max. working pressure 2 bar
• Operating temperature -25… +85°C
• Medium temperature -25… +125°C
• Operating voltage 9... 30 VDC
• EN 175301-803 with junction box
Also available are models for absolute pressure measurement.
| Series | ECT 8473 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 0.20 |
| Min. ambient temperature (°C) | -25 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G 1/4" |
| Material (sensor) | Ceramic |
| Output signal | 4... 20mA |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| IP-Class | IP65 |
| Explosion-proof version | No |
| WRAS | No |
| Manufacturer | Trafag |
| HVAC | 4568491 |
| Electrical number | 2701056 |
| Manufacturer code | ECT0.2A |
