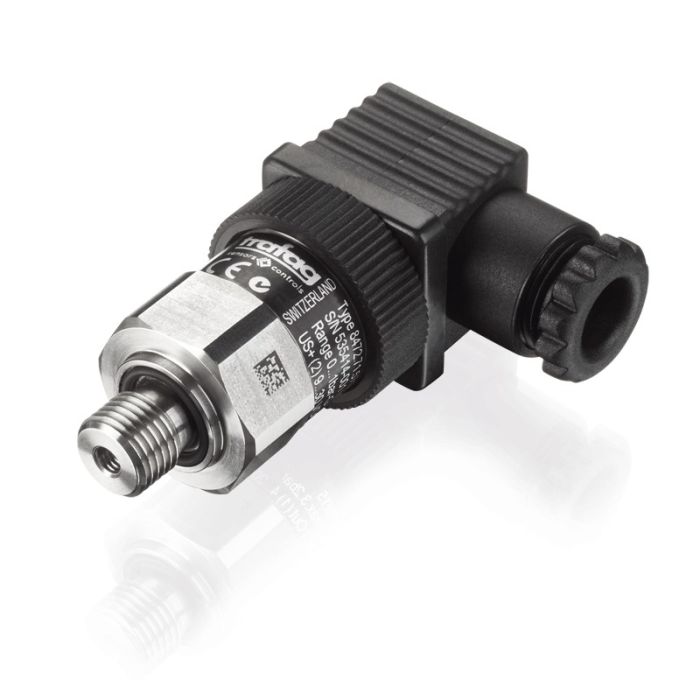

Pressure transmitter Trafag ECT10.0A
Lead time if the product is out of stock (business days):
35
ECT pressure transmitter 4 – 20 mA G ¼" external thread.
• Sensor material Ceramic, AISI 316L
• Max. working pressure 20 bar
• Operating temperature -25… +85°C
• Medium temperature -25… +125°C
• Operating voltage 9... 30 VDC
• EN 175301-803 with junction box
Also available are models for absolute pressure measurement.
• Sensor material Ceramic, AISI 316L
• Max. working pressure 20 bar
• Operating temperature -25… +85°C
• Medium temperature -25… +125°C
• Operating voltage 9... 30 VDC
• EN 175301-803 with junction box
Also available are models for absolute pressure measurement.
| Series | ECT 8472 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range, bar | 0.00 |
| Max. measurement range, bar | 10.00 |
| Min. ambient temperature, °C | -25.00 |
| Max. ambient temperature, °C | 125.00 |
| Process connection | G 1/4" |
| Sensor material | Ceramic |
| Output signal | 4... 20mA |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| IP-Class | IP65 |
| WRAS | No |
| SIL | No |
| Manufacturer | Trafag |
| HVAC | 4568574 |
| Electrical number | 2729707 |
| Manufacturer code | ECT10.0A |
