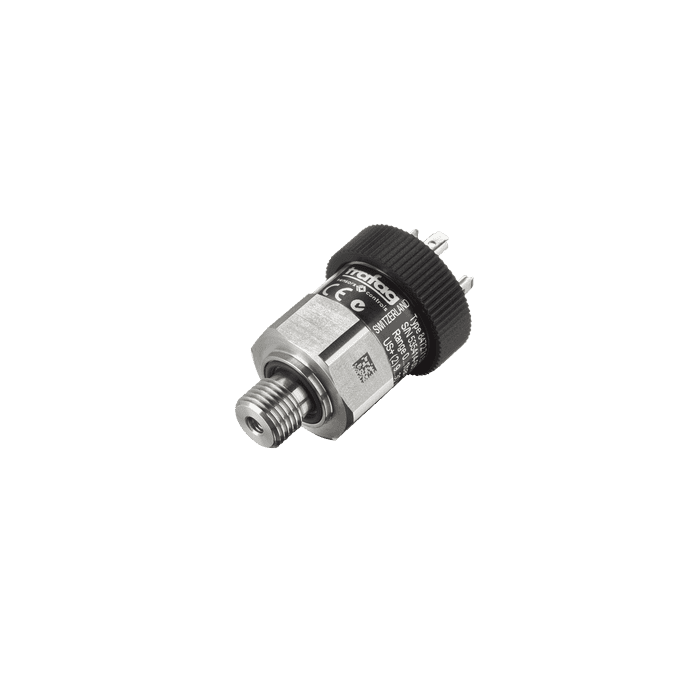

Pressure transmitter Trafag ECT8472
Lead time if the product is out of stock (business days):
35
ECT pressure transmitter 4-20 mA G ¼" external thread.
• Sensor material: Ceramic, AISI 316L
• Operating temperature: -25...+85°C
• Medium temperature: -25...+125°C
• Operating voltage: 9...30 VDC
• EN 175301-803 junction box
Also available are models for absolute pressure measurement.
| Model | Range bar | Range °C | Max. working pressure bar | Accuracy from full range NLH |
| ECT1.0V | 0...1 | -25…+125°C | 3,2 | ± 0,5 % |
| ECT1.6V | 0...1,6 | -25…+125°C | 3,2 | ± 0,5 % |
| ECT2.5V | 0...2,5 | -25…+125°C | 5 | ± 0,5 % |
| ECT4.0V | 0...4 | -25…+125°C | 8 | ± 0,5 % |
| ECT6.0V | 0...6 | -25…+125°C | 12 | ± 0,5 % |
| ECT10.0V | 0...10 | -25…+125°C | 20 | ± 0,5 % |
| ECT16.0V | 0...16 | -25…+125°C | 32 | ± 0,5 % |
| ECT25.0V | 0...25 | -25…+125°C | 50 | ± 0,5 % |
| ECT40.0V | 0...40 | -25…+125°C | 80 | ± 0,5 % |
| ECT60.0V | 0...60 | -25…+125°C | 120 | ± 0,5 % |
• Sensor material: Ceramic, AISI 316L
• Operating temperature: -25...+85°C
• Medium temperature: -25...+125°C
• Operating voltage: 9...30 VDC
• EN 175301-803 junction box
Also available are models for absolute pressure measurement.
| Series | ECT 8472 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 400 |
| Min. ambient temperature (°C) | -25 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/4" |
| Output signal | 0...10V |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| Material (sensor) | AISI630 |
| IP-class | IP67 |
| Brand | Trafag |
