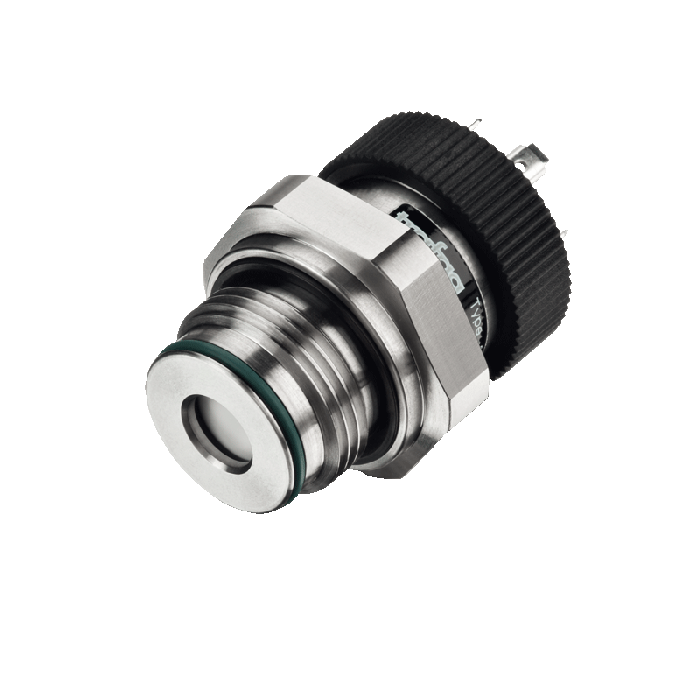

Pressure transmitter Trafag ECTF8473
Lead time if the product is out of stock (business days):
35
ECTF pressure transmitter with ceramic front membrane G3/4" external thread.
• Pressure transmitter with ceramic front membrane, G3/4" external thread
• Sensor material: ceramic, standard body AISI303 (Option AISI316L, Duplex or Titanium)
• Operating temperature : -25..+85°C
• Medium temperature : -25..+125°C
• Electrical connection: EN175301-803-A with junction box
• Output message: 4-20 mA
• Pressure transmitter with ceramic front membrane, G3/4" external thread
• Sensor material: ceramic, standard body AISI303 (Option AISI316L, Duplex or Titanium)
• Operating temperature : -25..+85°C
• Medium temperature : -25..+125°C
• Electrical connection: EN175301-803-A with junction box
• Output message: 4-20 mA
| Series | ECTF 8473 |
|---|---|
| Product type | Pressure transmitter |
| Min measurement range (bar) | 0 |
| Max measurement range (bar) | 40 |
| Min. ambient temperature (°C) | -25 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G3/4" |
| Output signal | 4...20mA |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| Material (sensor) | Ceramic |
| IP-class | IP65 |
| Brand | Trafag |
