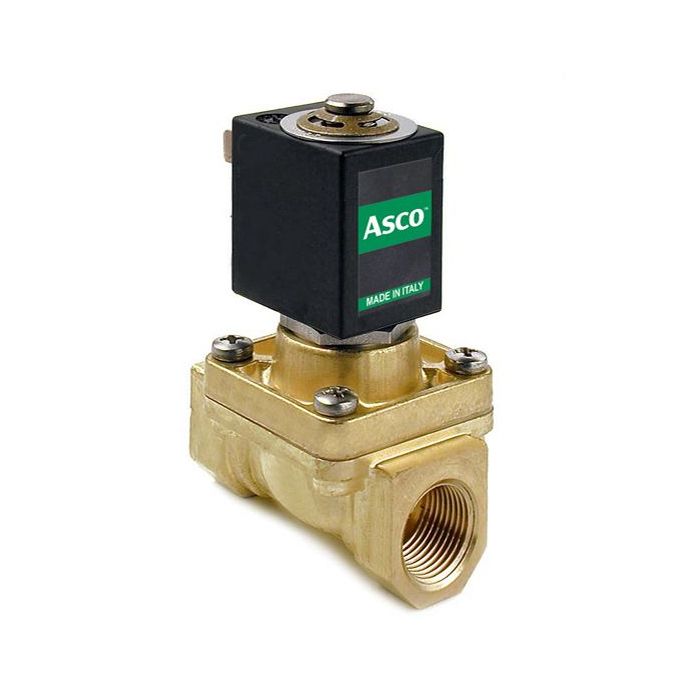

Solenoid valve ASCO L145R4-Z534A-3/4" 110V/50Hz
Lead time if the product is out of stock (business days):
30
• Solenoid valve for steam
• Fluid temperature max. 170 °C
• Membrane PTFE-reinforced
• Sizes: 3/8"-1"
• Requires a pressure difference of at least 0.4 bar to operate
• Available in AC voltage only
• This valve is delivered with a connector
• Fluid temperature max. 170 °C
• Membrane PTFE-reinforced
• Sizes: 3/8"-1"
• Requires a pressure difference of at least 0.4 bar to operate
• Available in AC voltage only
• This valve is delivered with a connector
| Series | L145 |
|---|---|
| Product type | 2-way solenoid valve |
| Material (body) | Brass |
| Valve function | 2-way normally closed NC |
| Media | Steam |
| Size | 3/4" |
| Supply voltage | 110V AC |
| Frequency | 50Hz |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 75 |
| Min. fluid temperature (°C) | 60 |
| Max. fluid temperature (°C) | 170 |
| Min. pressure (bar) | 0.4 |
| Max. pressure (bar) | 6 |
| IP-class | IP65 |
| Brand | ASCO |
