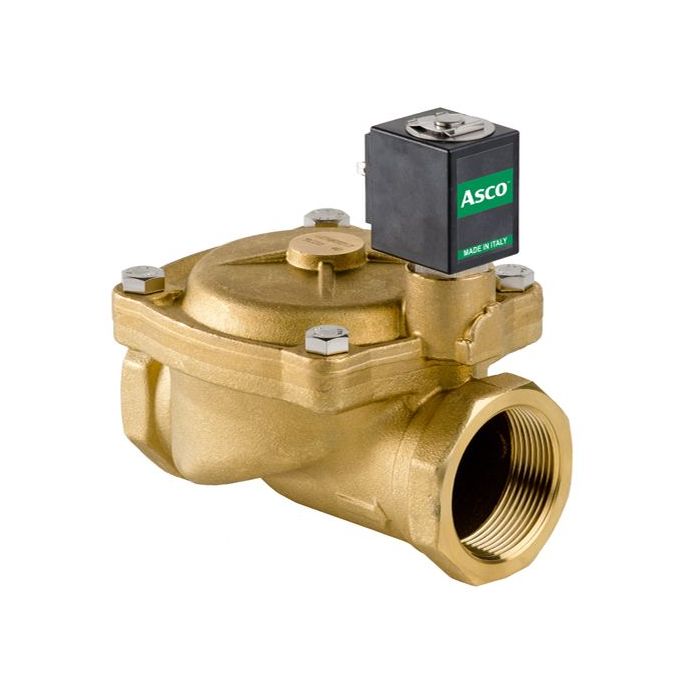

Electromagnetic solenoid valve Asco L182B48 ZA10A 1 1/2"- 24VDC

Lead time if the product is out of stock (business days):

117
ASCO Series L182-BIG

• General purpose valves are designed to control water, air, inert gases, steam and non-aggressive fluids.
• These valves can be used for wide range of industrial applications.
• Available in 2/2 or 3/2 normally closed, open or universal service versions plus proportional control and latching versions.
• Diaphragm valve, pilot operated, having full orifice.
• Suitable to shut off liquid and gaseous fluids (verify the compatibility of fluid with material in contact).
• Not suitable for use with dangerous fluids listed in Group 1, therefore they are free from CE marking in conformity with article 3 § 3 of the European Directive 97/23/EC (Pressure Equipment Directive).
Technical characteristics
Series L182-big
Product type 2-way solenoid valve
Features Water supply system for differential pressure, water shock absorber
Min. ambient temperature, °C -20.00
Max. ambient temperature, °C 75.00
Min. medium temperature, °C -10.00
Max. medium temperature, °C 90.00
Min. pressure, bar 0.50
Max. pressure, bar 10.00
Pipe size 1 1/2"
Body L182B48
Coil ZA10A
Function NC - de-energize Close
Flow-through factor Kv, m3/h 15.00
Supply voltage 24VDC
Material Brass
Sealing material NBR (Nitrile butadiene rubber)
IP-Class IP65
Medium Water, Air, Oil
WRAS No
SIL No
Manufacturer ASCO
HVAC 4125078
Manufacturer code L182B48-ZA10A-1 1/2" 24VDC
